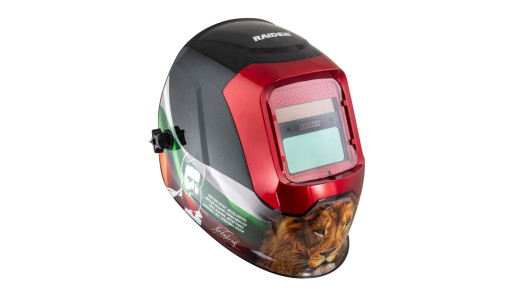

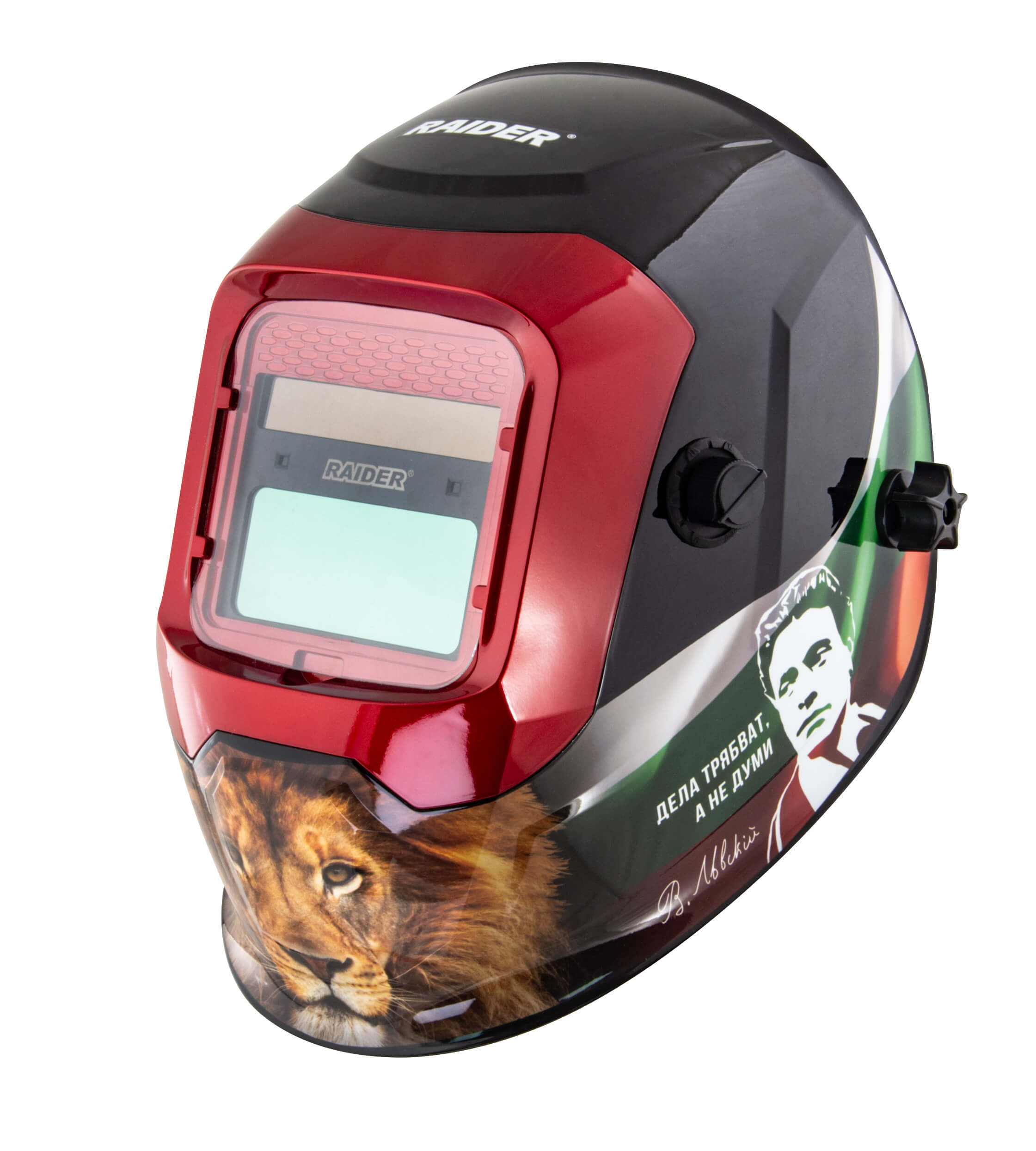

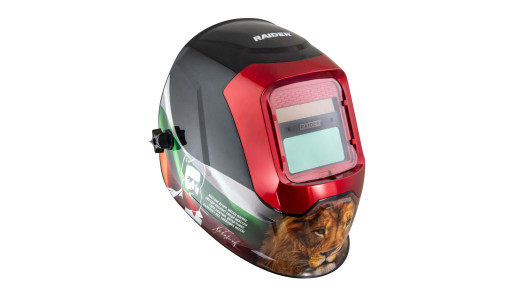

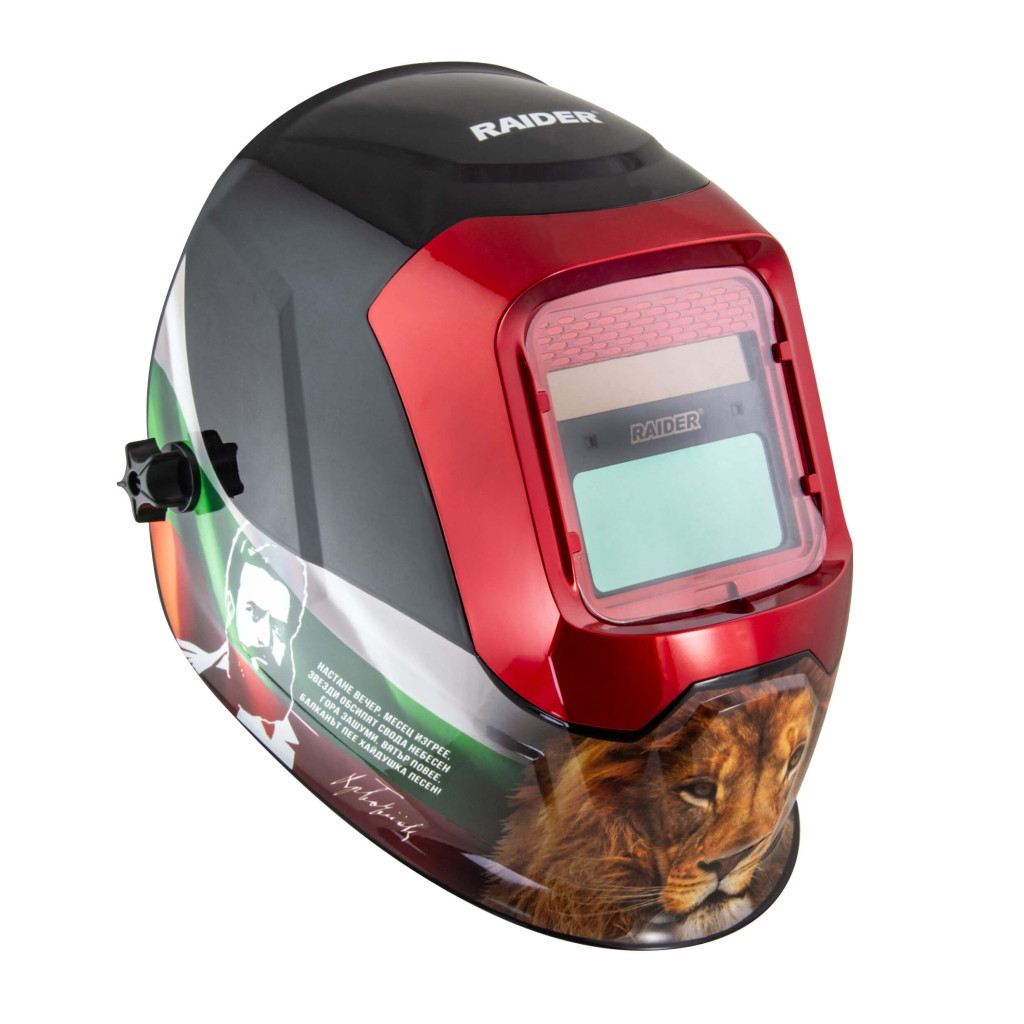

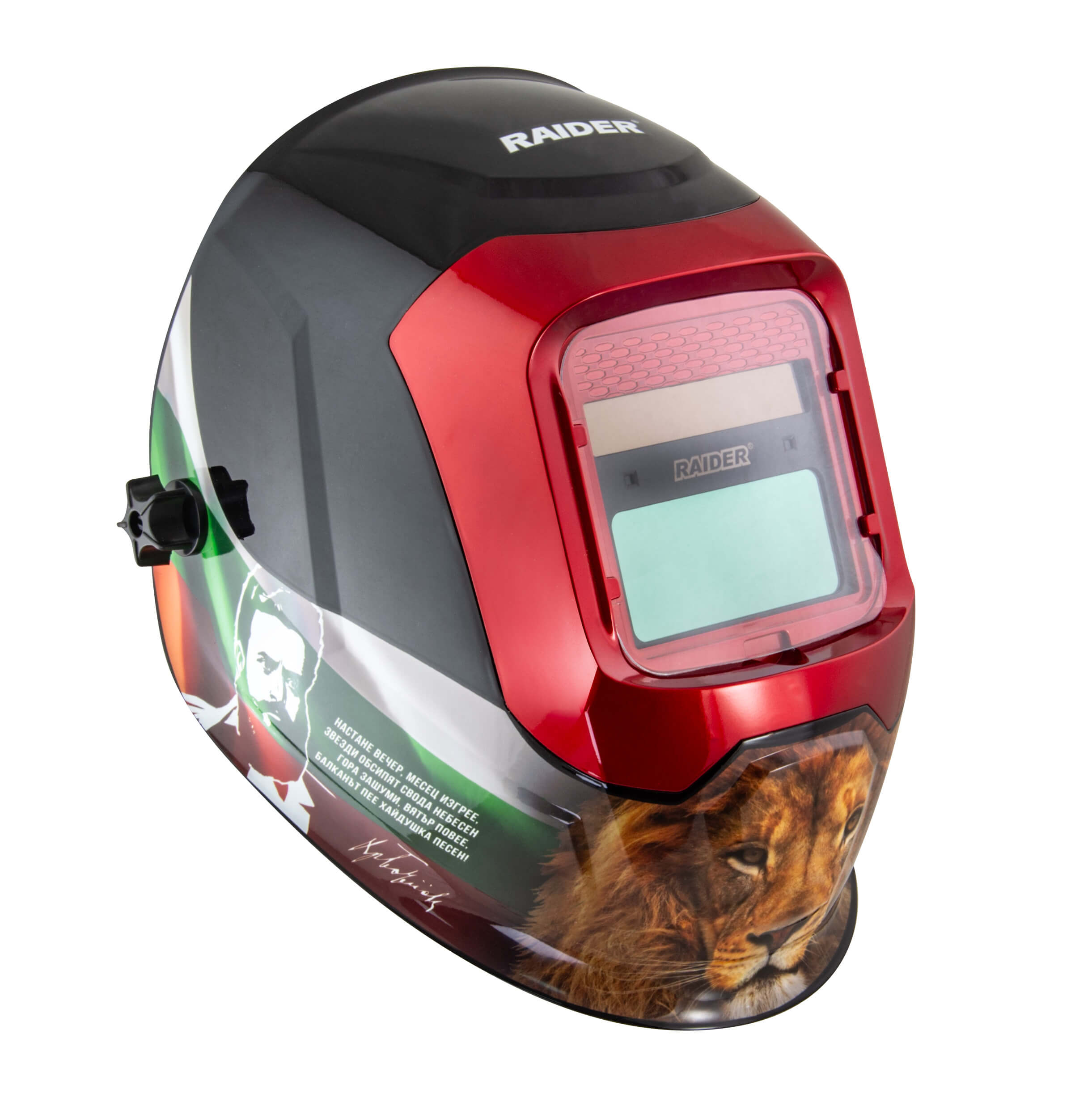

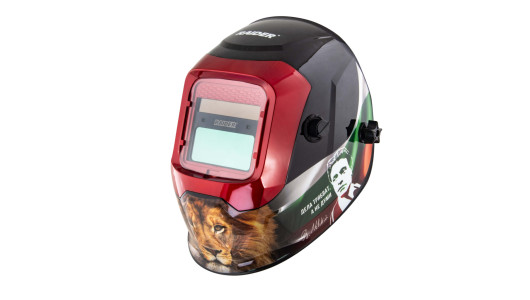

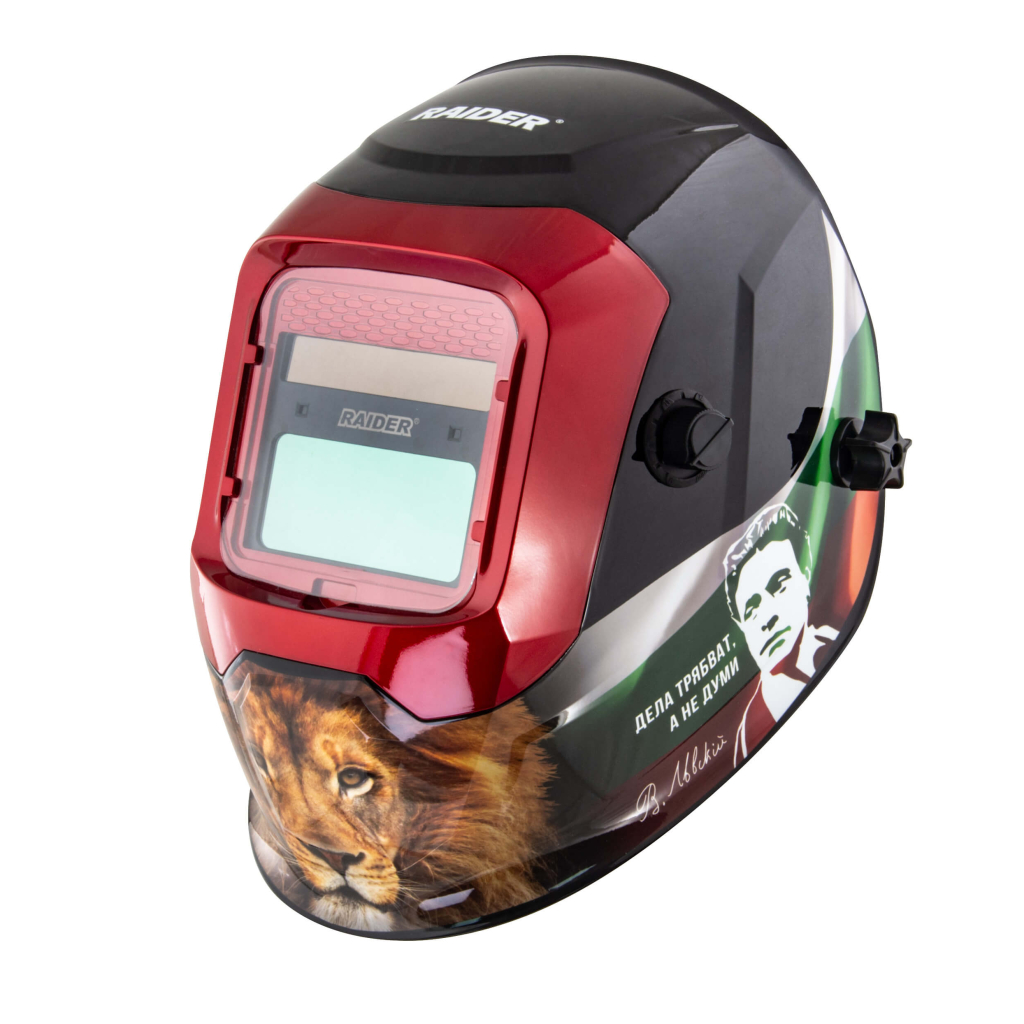

Welding Helmet DIN 9-13 Grinding design RD-WH03
Welding Helmet DIN 9-13 Grinding design RD-WH03
- Dimming control
- Fully automatic on and off
- Photosolar + Lithium-ion battery power supply
- Modern design
Article number: 138307
Barcode: 3800972004405
Brand: Raider Power Tools
Barcode: 3800972004405
Brand: Raider Power Tools
Download:
Description
Welding of metals is associated with a large number of dangerous and harmful factors, bright light of the electric arc, ultraviolet and infrared rays, hot metal and slag, toxic aerosols and gases.
One of the most important means of protecting the welder from these factors is the RAIDER welding helmet RD-WH03 has:
Dimming adjustment
Possibility to turn on / off the filter depending on the brightness of the arc and the light radiation of the hot metal
Photosolar + Lithium-ion battery power supply
Modern distinctive design
One of the most important means of protecting the welder from these factors is the RAIDER welding helmet RD-WH03 has:
Features
Main characteristics
| Operating temperature (°C) | -10|55 °C |
| Storage temperature (°C) | -20|70 °C |
| Tig range (amps/DC; amps/AC) | ≥ 35; ≥ 15 amps/DC; amps/AC |
| Light to dark adaptation time (sec) | 0.2|1.0 sec |
| Optical class | 1/1/1/2 |
| Switching time (sec) | 1/25000 sec |
| Packing (pcs.) | 1 pcs |
| View size (mm) | 110x90 mm |
| Filter dimensions (mm) | 110x90x9 mm |
| Uv/ir protection (DIN) | 16 DIN |
| Sensor | 2 |
| Light shade state (DIN) | 4 DIN |
| Dark shade state (DIN) | 9-13 DIN |
| View size (mm) | 92x42 mm |
| Turing on & off | Automatically |
| In accordance with | CE EN175 EN379 |
| Sensitivity control | Outer Side Smooth Adjustment From Low To High |
| Material | PP |
| Rated voltage type | Solar Cells + Li-Ion Battery |
