  • Powerful 1700 W electric motor providing an RPM of up to 4000 min-1
  • Possibility to adjust the cutting depth from 5 to 40 mm
  • Possibility to connect a dust collector for extra clean operation
  • Laser feature available to help precision cutting during operation
Article number: 020901
Barcode: 3800972022614
Brand: Raider Pro

pictogram
pictogram
pictogram
pictogram
pictogram
pictogram
Description
The Raider Pro series machines have high performance, improved functionality and a 3 year warranty. The range of power tools offered can meet the needs of any user, depending on the requirements and scale of work.

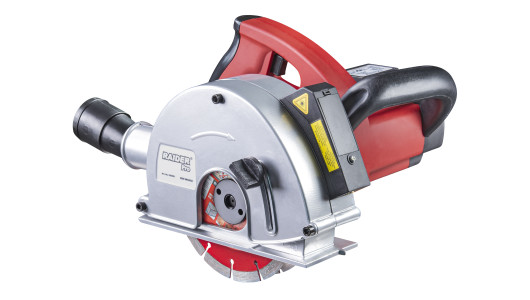

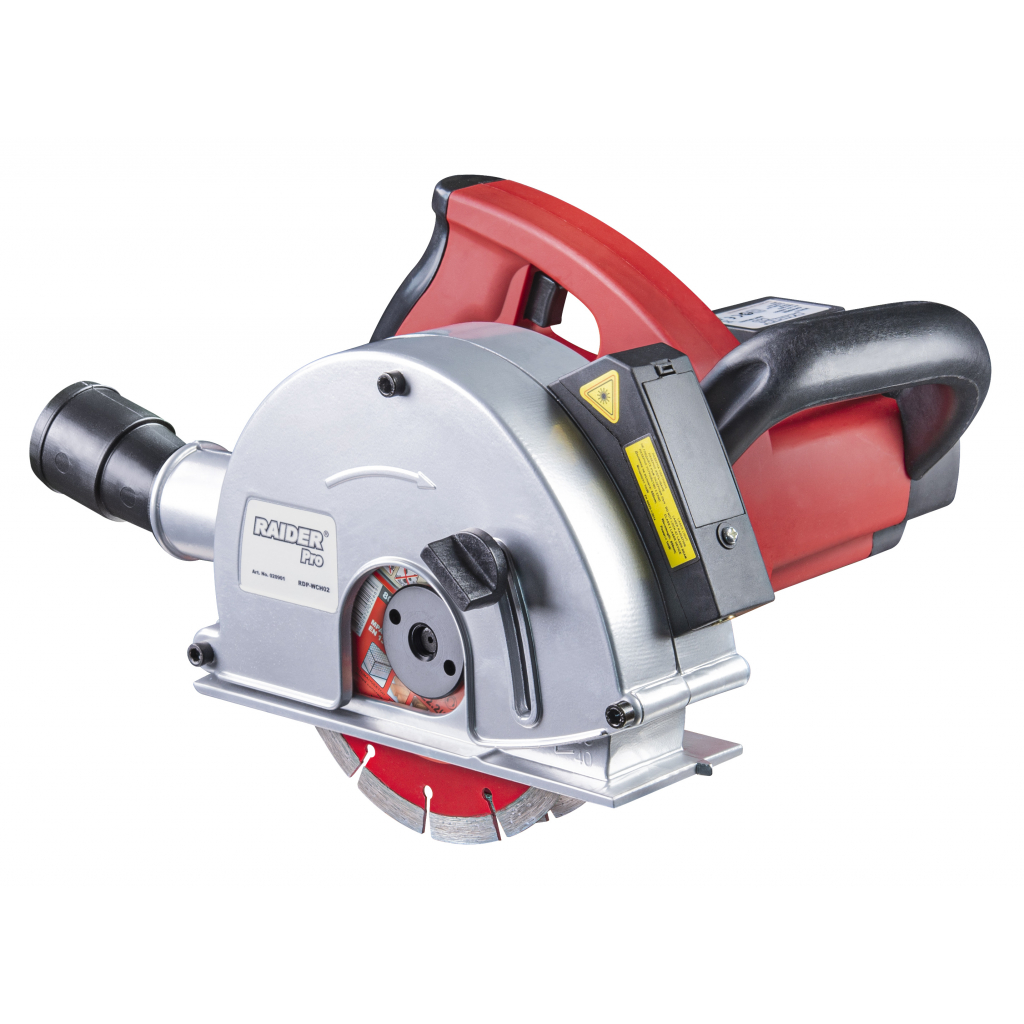

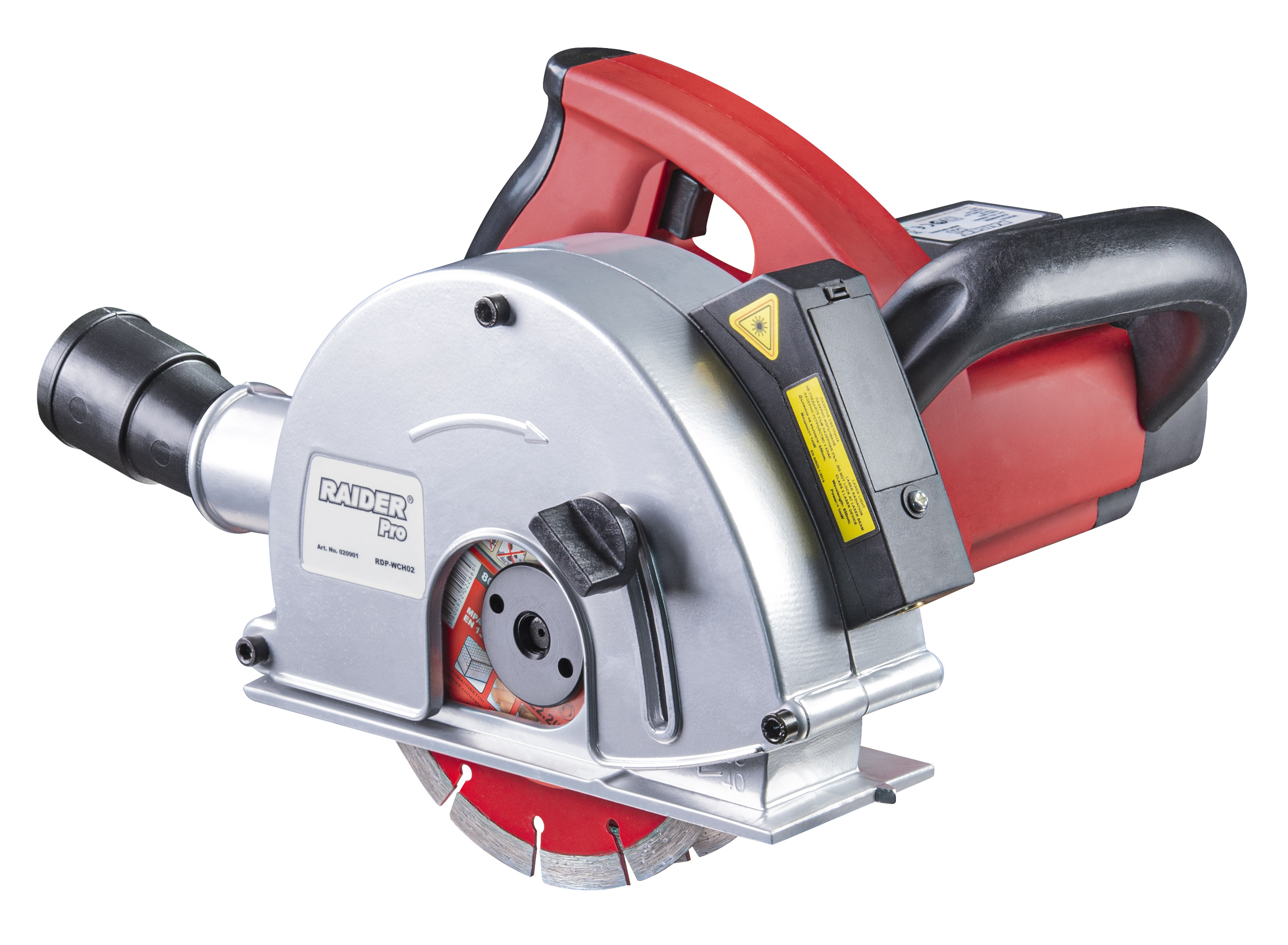

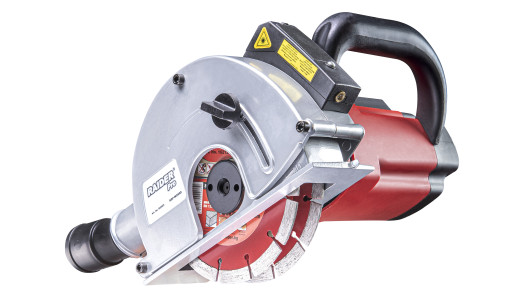

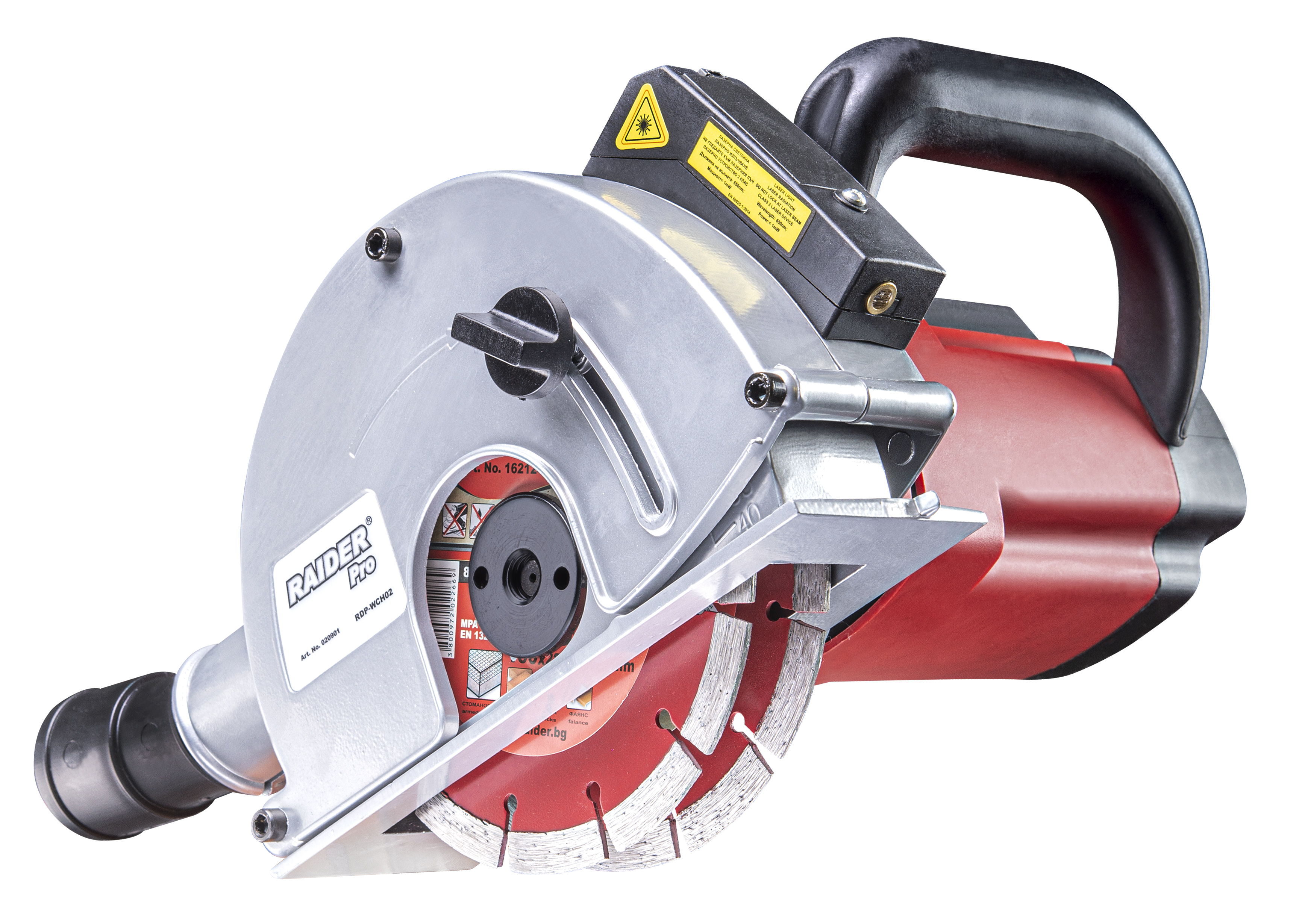

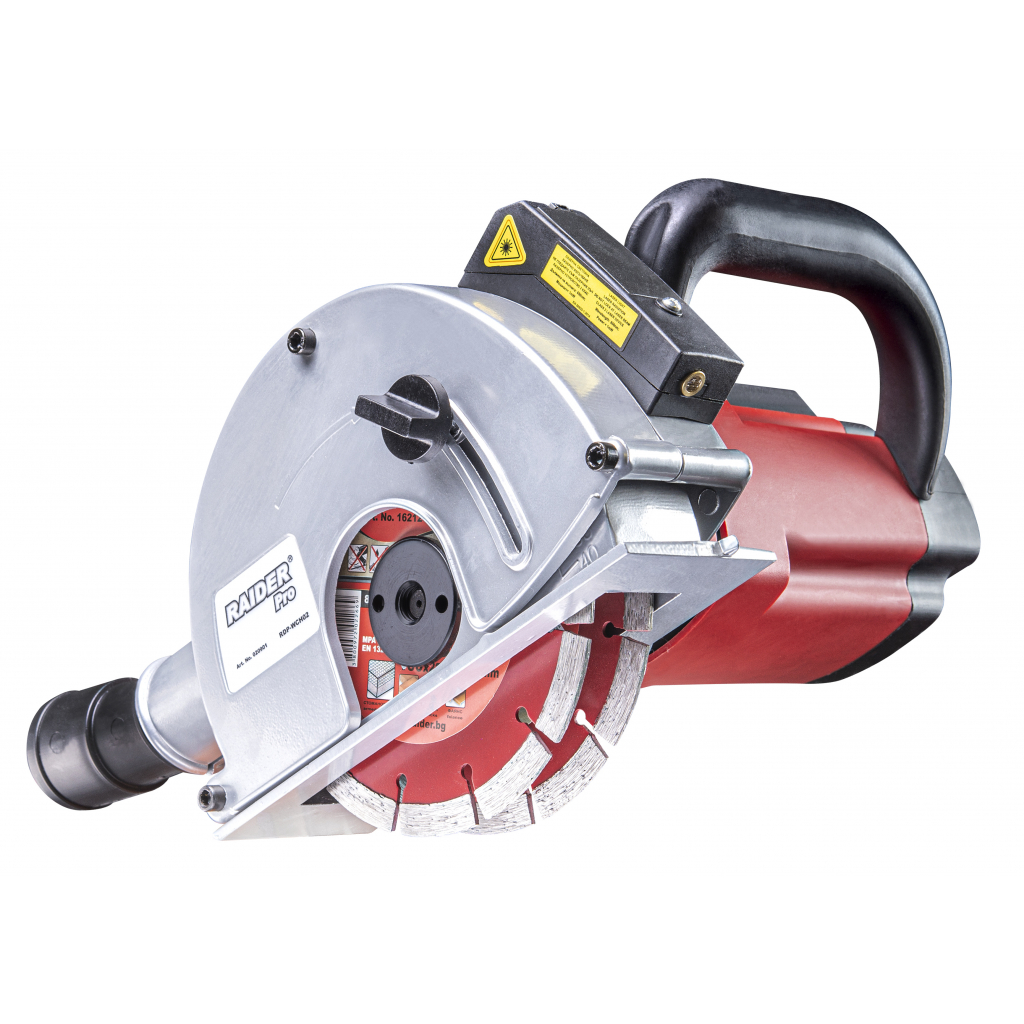

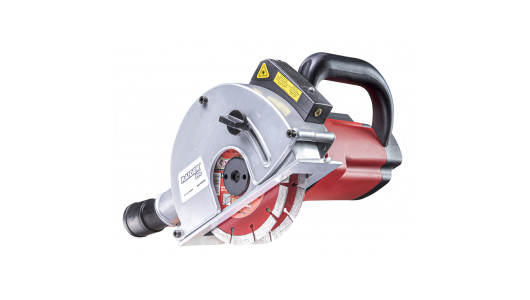

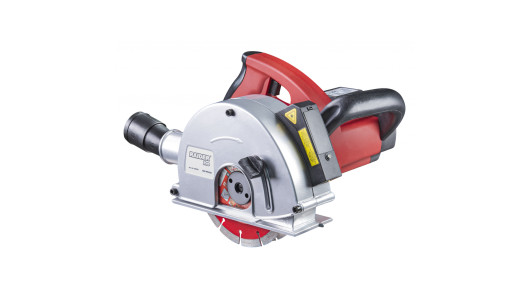

The Wall Chaser Raider RDP-WCH02 is designed for cutting channels in concrete, aerated concrete, brick walls, stone, etc. , for the purpose of laying electrical, plumbing and gas installations, cable networks, etc. The machine is for dry cutting only

The model has:

  • Powerful 1700 W electric motor for easy milling

  • Ability to adjust the distance between the two discs thus achieving a cutting width of 14 mm, 19 mm, 29 mm

  • Adjustable cutting depth of up to 40 mm

  • Laser available to help cut a straight line without further delineating the cutting surface

  • Easy and convenient replacement of cutting discs

  • The model is equipped with an overload protection feature

  • Sturdy metal protective cover covering the cutting area

  • Nozzle for easy connection to dust collectors

  • Robust and easy machine guidance with the main and optional rubber grips

  • Sound power level of 96.3 dB (A) / K=3 /

  • Sound pressure level of 85.3dB (A) / K=3 /

  • Vibration level of 7.214 / K=1.5 m/s2 /

  • Features
    Main characteristics
    Disc diameter 150 mm
    Rated input power 1700 W
    Rated voltage type Corded - Electrical Grid
    Additional characteristics
    Protection class II
    Maximum no- load speed 0 - 4000 min-1
    Rated voltage 230 V
    Adjustable load speed NO
    Spindle thread M12
    Shaft locking YES
    Quick- locking nut With A Key
    Disc fuse protector Installation With Tools
    Auxiliary handle YES
    Electric motor type Brush
    Filter NO
    Internal bore diameter 22.2 mm

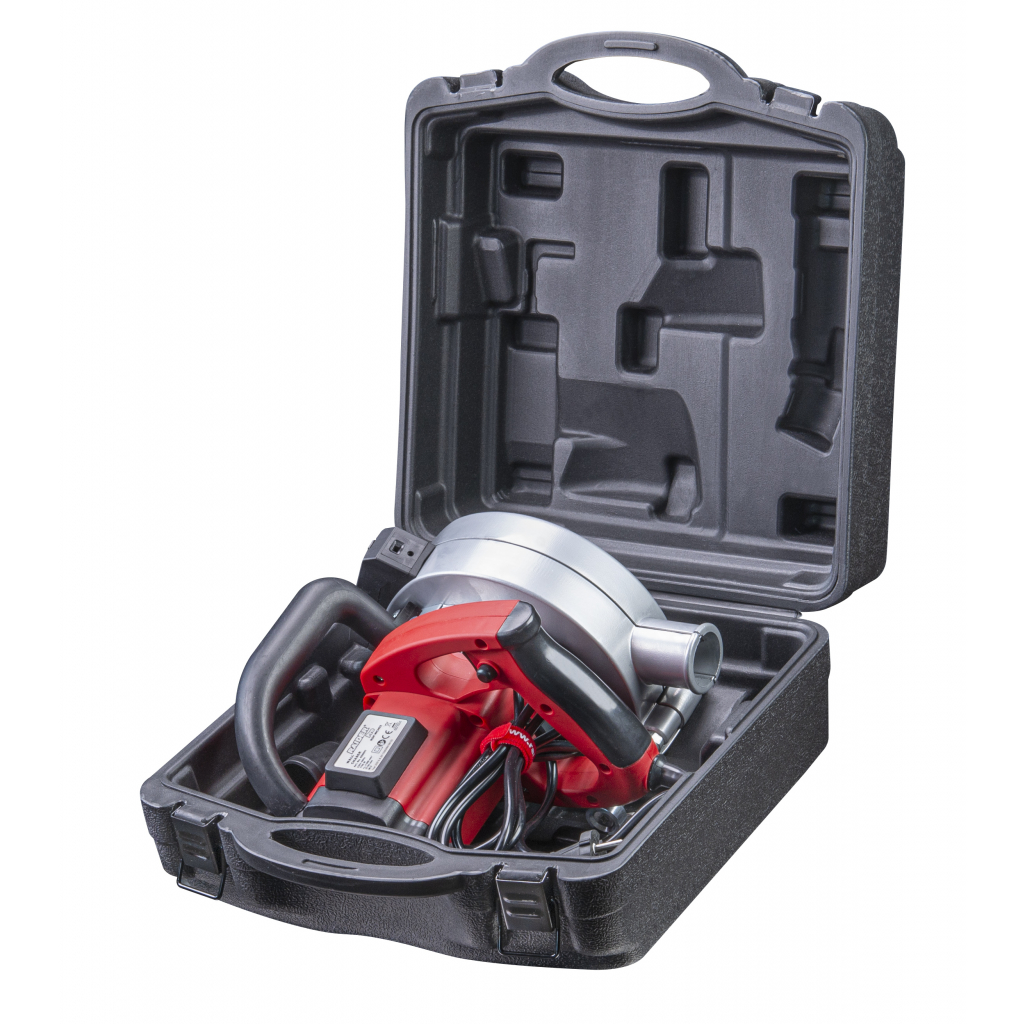

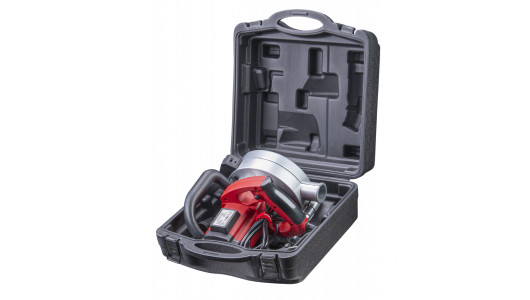

    Equipment
    Disc2 pc.
    Key with two pins1 pc.
    Spare brush set1 pc.
    Hex key1 pc.
    Adapter1 pc.
