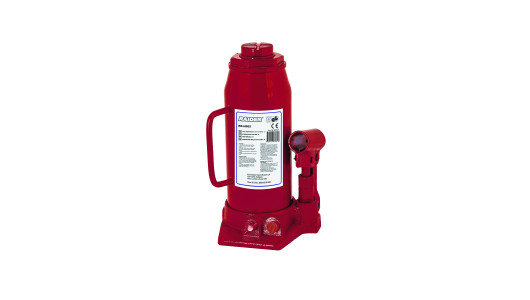

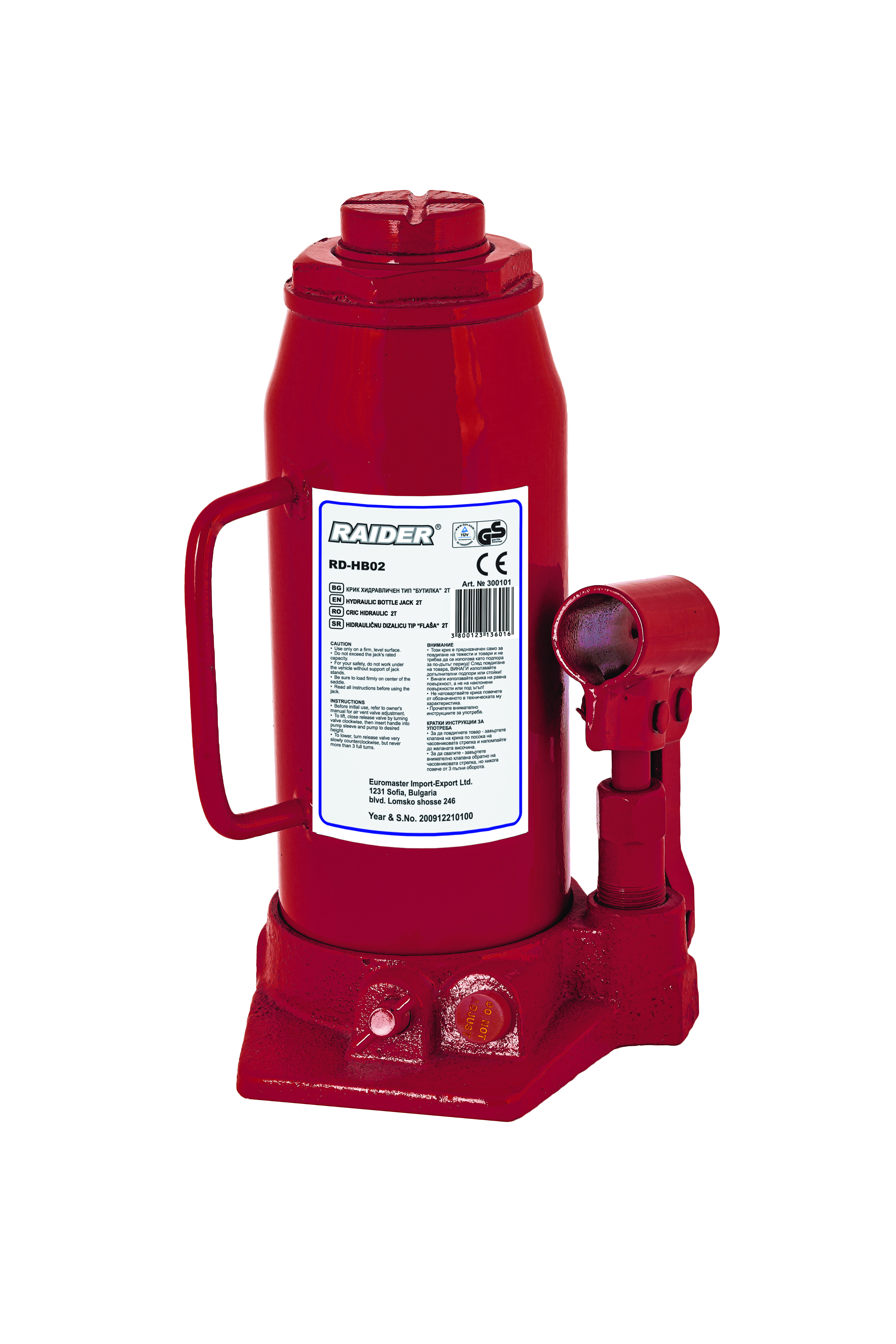

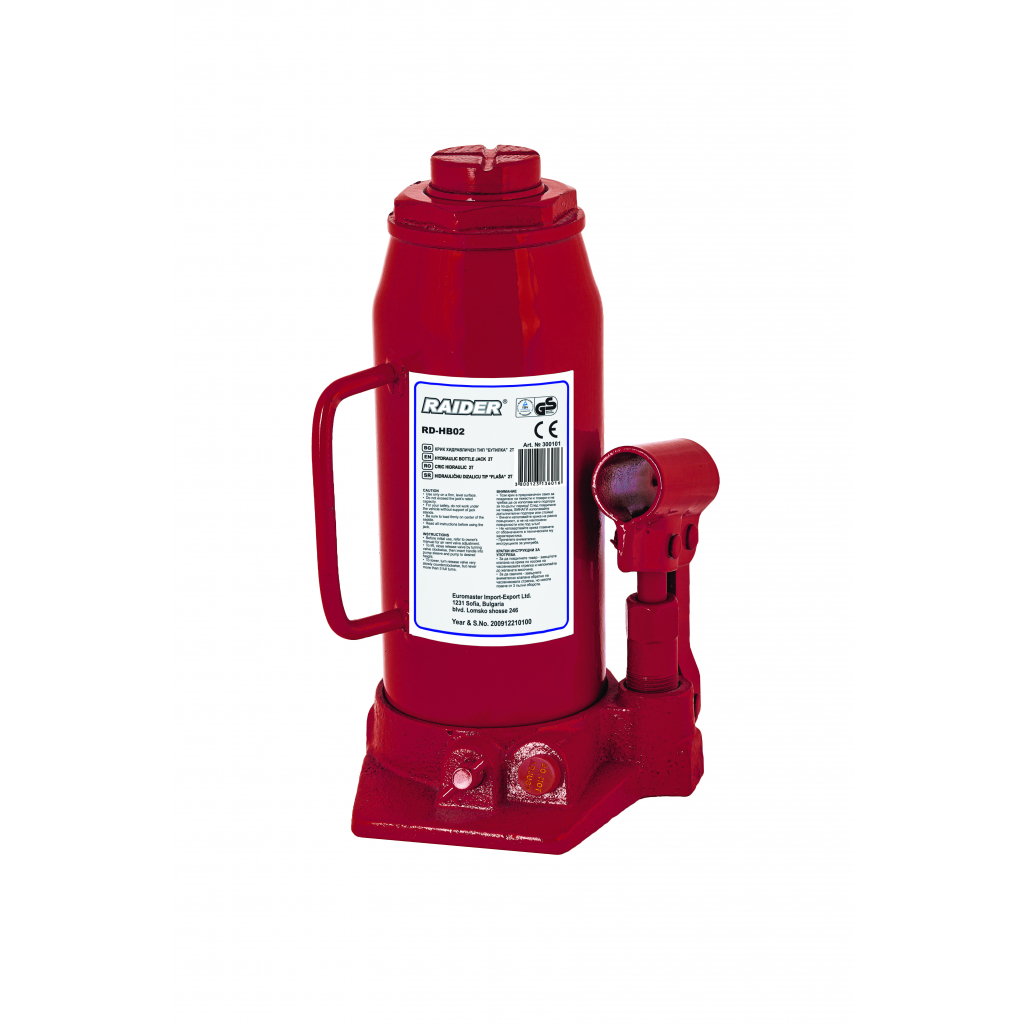

Hydraulic bottle jack 2t RD-HB02
Hydraulic bottle jack 2t RD-HB02
- For vertical lifting operations
- High stability
- Compact size
Article number: 300101
Barcode: 3800123136016
Brand: Raider Power Tools
Barcode: 3800123136016
Brand: Raider Power Tools
Series
| Art. Number | Product | Maximum lifting capacity (t) | Maximum piston movement (mm) | Maximum screw movement (mm) | Maximum trolley jack height (mm) | Minimum trolley jack height (mm) | Type |
|---|---|---|---|---|---|---|---|
| 300101 |
Raider Power Tools Hydraulic bottle jack 2t RD-HB02 |
2 t | 80 mm | 50 mm | 278 mm | 148 mm | Bottle |
| 300102 |
Raider Power Tools Hydraulic bottle jack 3t RD-HB03 |
3 t | 110 mm | 50 mm | 340 mm | 180 mm | Bottle |
| 300103 |
Raider Power Tools Hydraulic bottle jack 4t RD-HB04 |
5 t | 110 mm | 50 mm | 340 mm | 180 mm | Bottle |
| 300104 |
Raider Power Tools Hydraulic bottle jack 5t RD-HB05 |
6 t | 110 mm | 60 mm | 355 mm | 185 mm | Bottle |
| 300106 |
Raider Power Tools Hydraulic bottle jack 10t RD-HB10 |
10 t | 125 mm | 60 mm | 385 mm | 200 mm | Bottle |
| 300108 |
Raider Power Tools Hydraulic bottle jack 15t RD-HB15 |
15 t | 140 mm | 60 mm | 425 mm | 255 mm | Bottle |
| 300109 |
Raider Power Tools Hydraulic bottle jack 20t RD-HB20 |
20 t | 145 mm | 60 mm | 440 mm | 235 mm | Bottle |
| 300110 |
Raider Power Tools Hydraulic bottle jack 32t RD-HB32 |
32 t | 150 mm | 405 mm | 255 mm | Bottle | |
| 300111 |
Raider Power Tools Hydraulic bottle jack 50t RD-HB50 |
50 t | 180 mm | 465 mm | 285 mm | Bottle |
Description
Raider Hydraulic Jacks are made of high quality, solid and durable materials that guarantee long service life and efficient use.
The RD-HB02 model is of the bottle type . They provide high stability thanks to their small size
Easy to carry and use
Maximum load capacity of 2t
Maximum reach height of 278mm
< li> Minimum height of 148mm
Piston stroke of 80mm
Screw stroke of 50mm
< li> Minimum height of 148mm
Features
Main characteristics
| Minimum trolley jack height (mm) | 148 mm |
| Maximum lifting capacity (t) | 2 t |
| Maximum trolley jack height (mm) | 278 mm |
| Maximum screw movement (mm) | 50 mm |
| Maximum piston movement (mm) | 80 mm |
| Type | Bottle |
Equipment
| Detachable lever | 1 pc. |
