  • Made of high quality chrome vanadium steel
  • Tilted under 70 ° key heads provide maximum access to difficult areas
Article number: 235149
Barcode: 3800123114663
Brand: Top Master Pro

Warranty (years)
30 years
Wrench thickness W1 (mm)
13.2 mm
Wrench thickness W2 (mm)
12.2 mm
Length (mm)
328 mm
Material
Cr-V
Generation
2nd generation
Size (mm)
24x27 mm
Spanner width D1 (mm)
40.9 mm
Spanner width D2 (mm)
36.7 mm
Coating
Matte
Series
Art. Number Product Coating Generation Length (mm) Material Size (mm) Spanner width D1 (mm) Spanner width D2 (mm) Warranty (years) Wrench thickness W1 (mm) Wrench thickness W2 (mm)
235140 Top Master Pro
Bi-hexagonal ring spanners 6х 7mm CR-V TMP DIN 838
Matte 2nd generation 175 mm Cr-V 6x7 mm 11.4 mm 10.5 mm 30 years 5.8 mm 5 mm
235141 Top Master Pro
Bi-hexagonal ring spanners 8х 9mm CR-V TMP DIN 838
Matte 2nd generation 185 mm Cr-V 8x9 mm 14.5 mm 13.2 mm 30 years 7 mm 6 mm
235142 Top Master Pro
Bi-hexagonal ring spanners 10х11mm CR-V TMP DIN 838
Matte 2nd generation 198 mm Cr-V 10x11 mm 17.9 mm 16.8 mm 30 years 8.4 mm 7.4 mm
235143 Top Master Pro
Bi-hexagonal ring spanners 12х13mm CR-V TMP DIN 838
Matte 2nd generation 215 mm Cr-V 12x13 mm 20.6 mm 19.5 mm 30 years 9.1 mm 8.4 mm
235144 Top Master Pro
Bi-hexagonal ring spanners 14х15mm CR-V TMP DIN 838
Matte 2nd generation 228 mm Cr-V 14x15 mm 23 mm 22.2 mm 30 years 10.4 mm 9.5 mm
235145 Top Master Pro
Bi-hexagonal ring spanners 16х17mm CR-V TMP DIN 838
Matte 2nd generation 246 mm Cr-V 16x17 mm 26 mm 24.8 mm 30 years 10.8 mm 10 mm
235146 Top Master Pro
Bi-hexagonal ring spanners 18х19mm CR-V TMP DIN 838
Matte 2nd generation 268 mm Cr-V 18x19 mm 29.2 mm 28.2 mm 30 years 12.1 mm 10.8 mm
235147 Top Master Pro
Bi-hexagonal ring spanners 20х22mm CR-V TMP DIN 838
Matte 2nd generation 292 mm Cr-V 20x22 mm 31.8 mm 30.9 mm 30 years 12.5 mm 11.7 mm
235148 Top Master Pro
Bi-hexagonal ring spanners 21х23mm CR-V TMP DIN 838
Matte 2nd generation 315 mm Cr-V 21x23 mm 33.8 mm 32 mm 30 years 13.4 mm 12.2 mm
235149 Top Master Pro

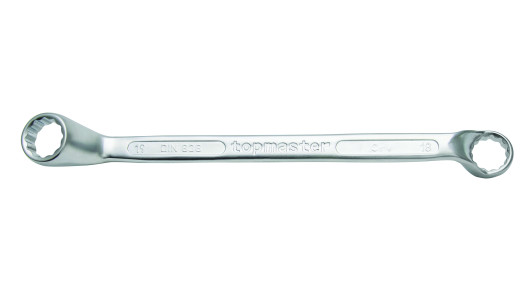

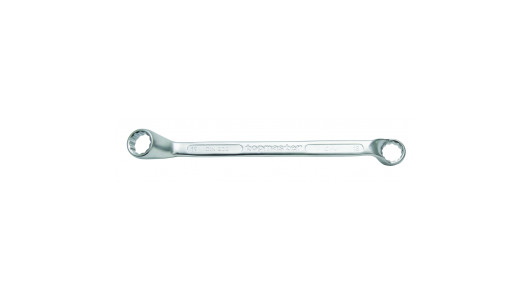

Bi-hexagonal ring spanners 24х27mm CR-V TMP DIN 838
Matte 2nd generation 328 mm Cr-V 24x27 mm 40.9 mm 36.7 mm 30 years 13.2 mm 12.2 mm
235150 Top Master Pro
Bi-hexagonal ring spanners 30х32mm CR-V TMP DIN 838
Matte 2nd generation 370 mm Cr-V 30x32 mm 46.5 mm 43.2 mm 30 years 16 mm 15.2 mm
Description
The professional hand tools of Topmaster combine exceptional design, quality & long service life.

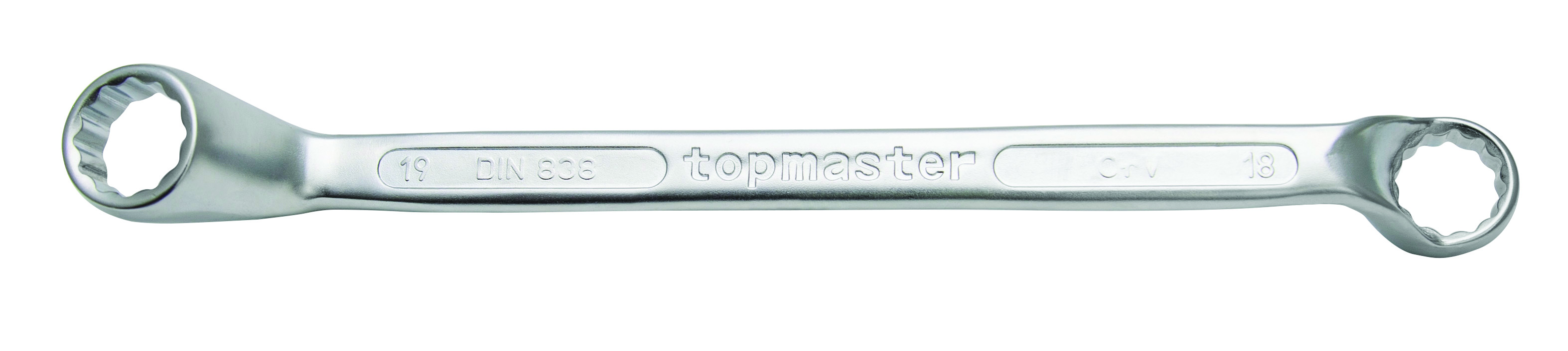

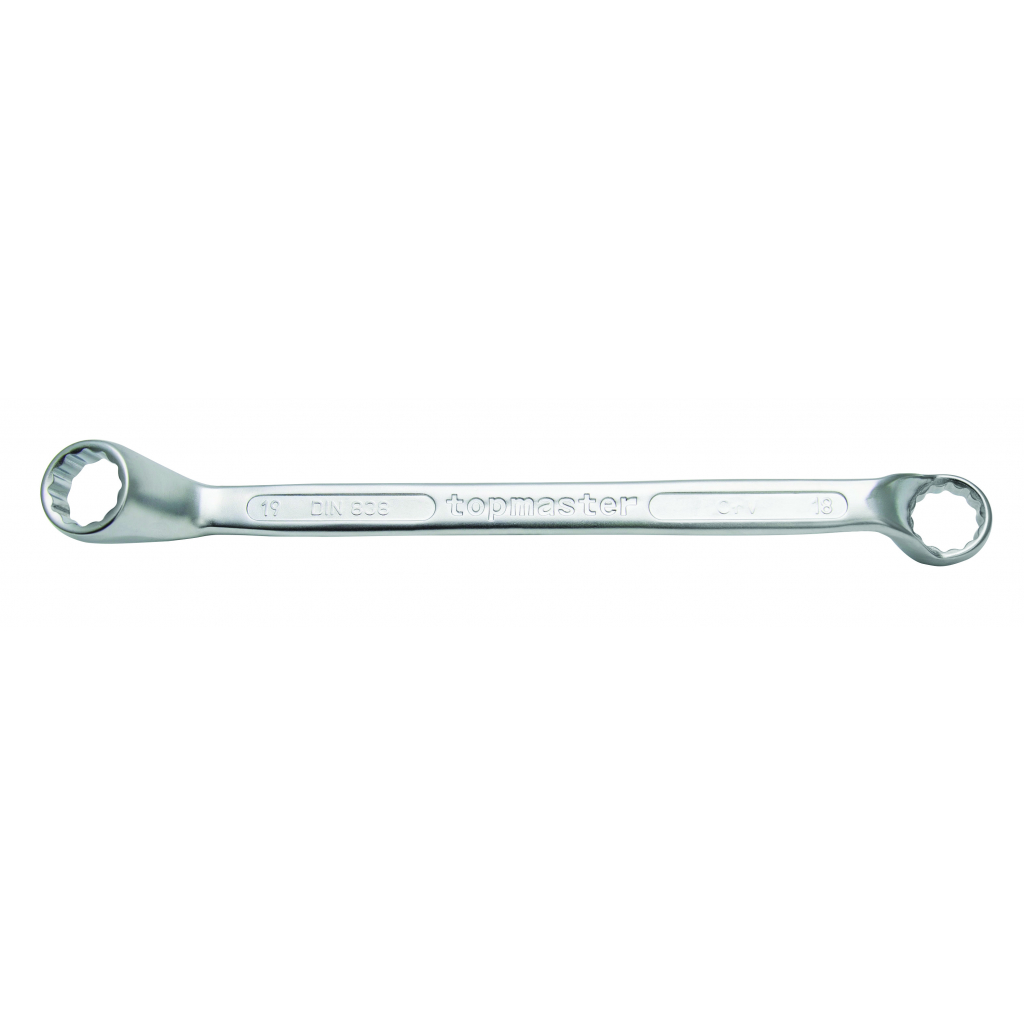

Topmaster 24x27 mm Bi-hexagonal ring spanners features:

  • High qualiy chrome- vanadium steel (Cr-V) , for great durability

  • Durable matt chrome finish

  • 70° tilted wrench heads provide maximum access to difficult places

  • Standardization: DIN 838

  • Features
    Main characteristics
    Wrench thickness W2 (mm) 12.2 mm
    Wrench thickness W1 (mm) 13.2 mm
    Size (mm) 24x27 mm
    Generation 2nd generation
    Warranty (years) 30 years
    Length (mm) 328 mm
    Spanner width D2 (mm) 36.7 mm
    Spanner width D1 (mm) 40.9 mm
    Material Cr-V
    Coating Matte
