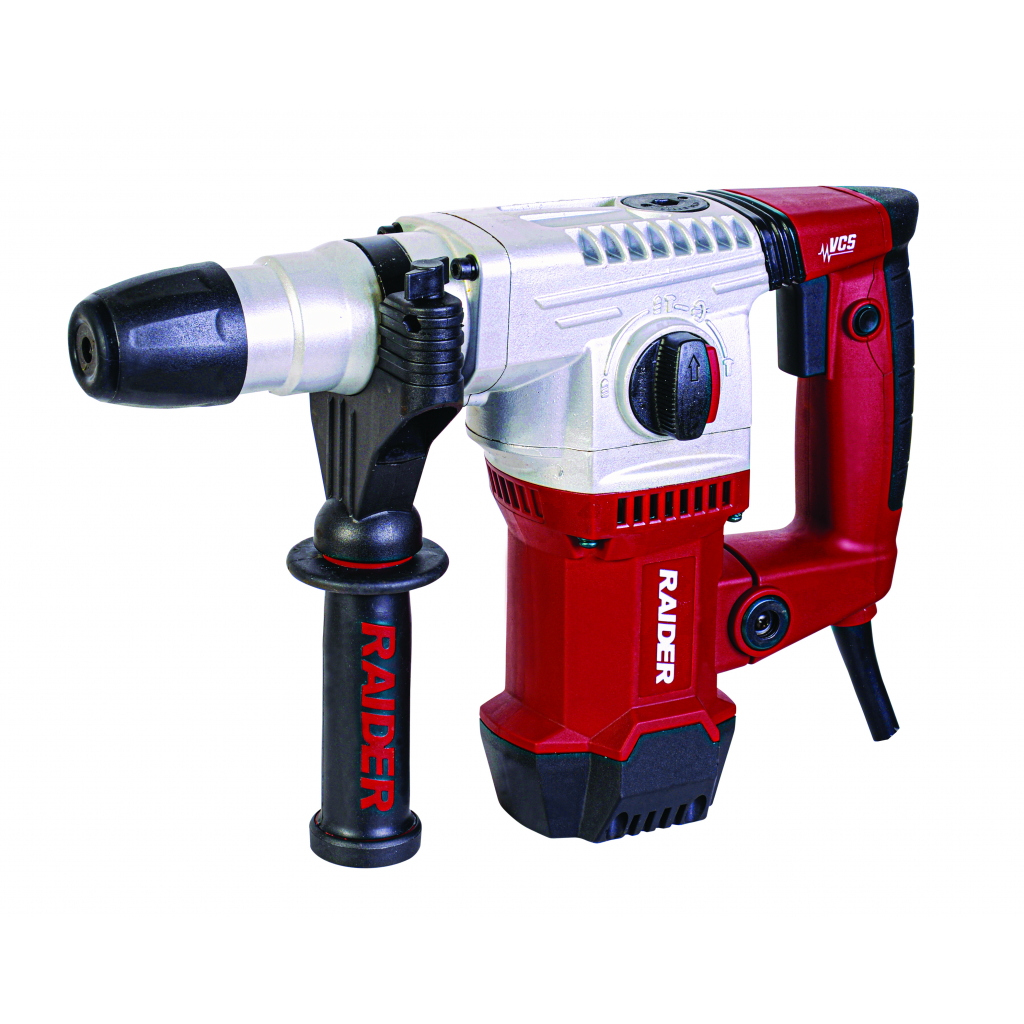

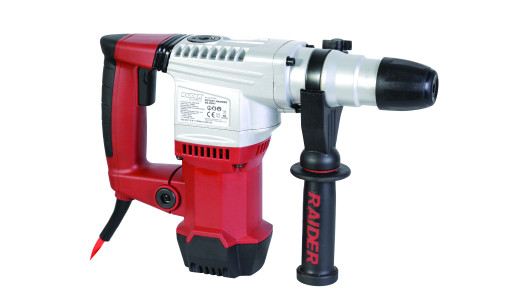

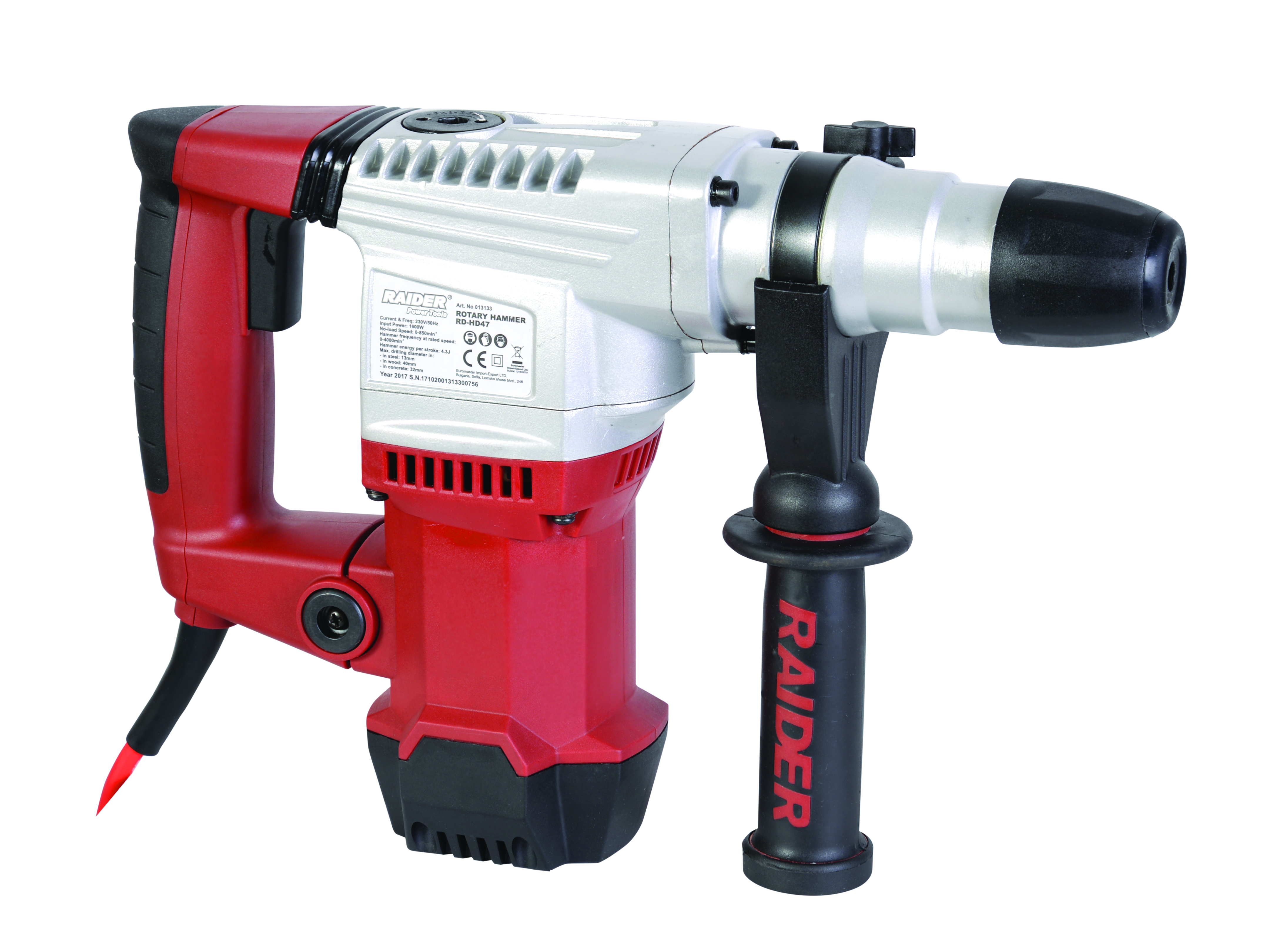

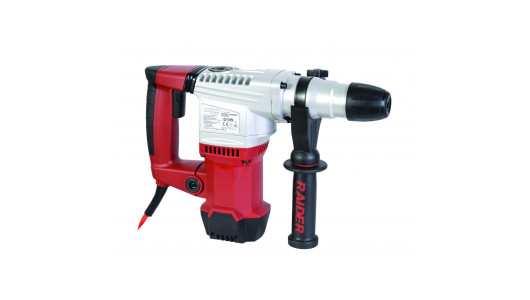

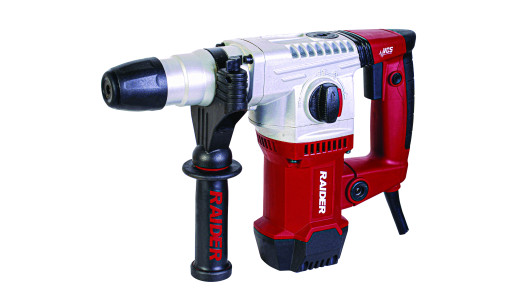

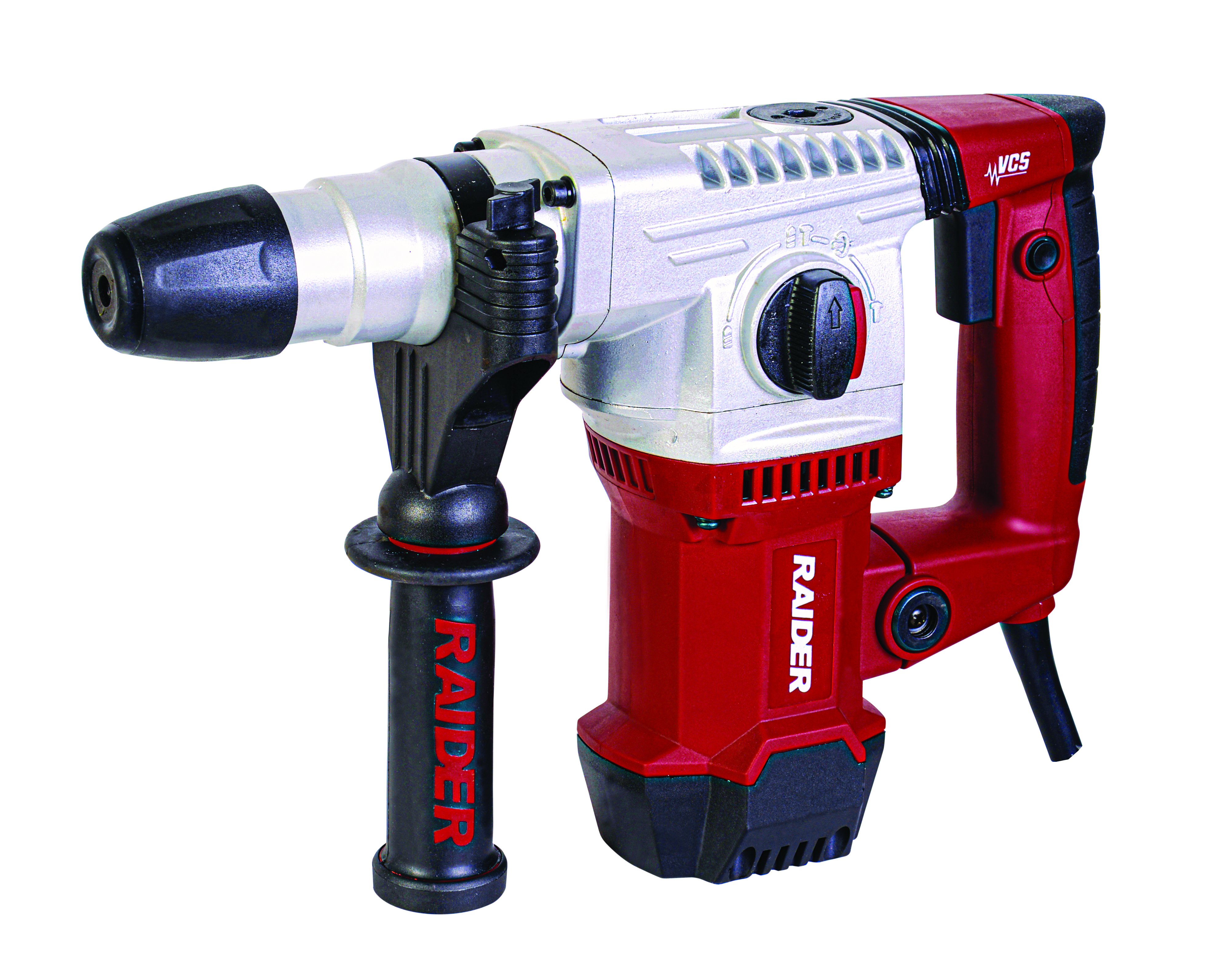

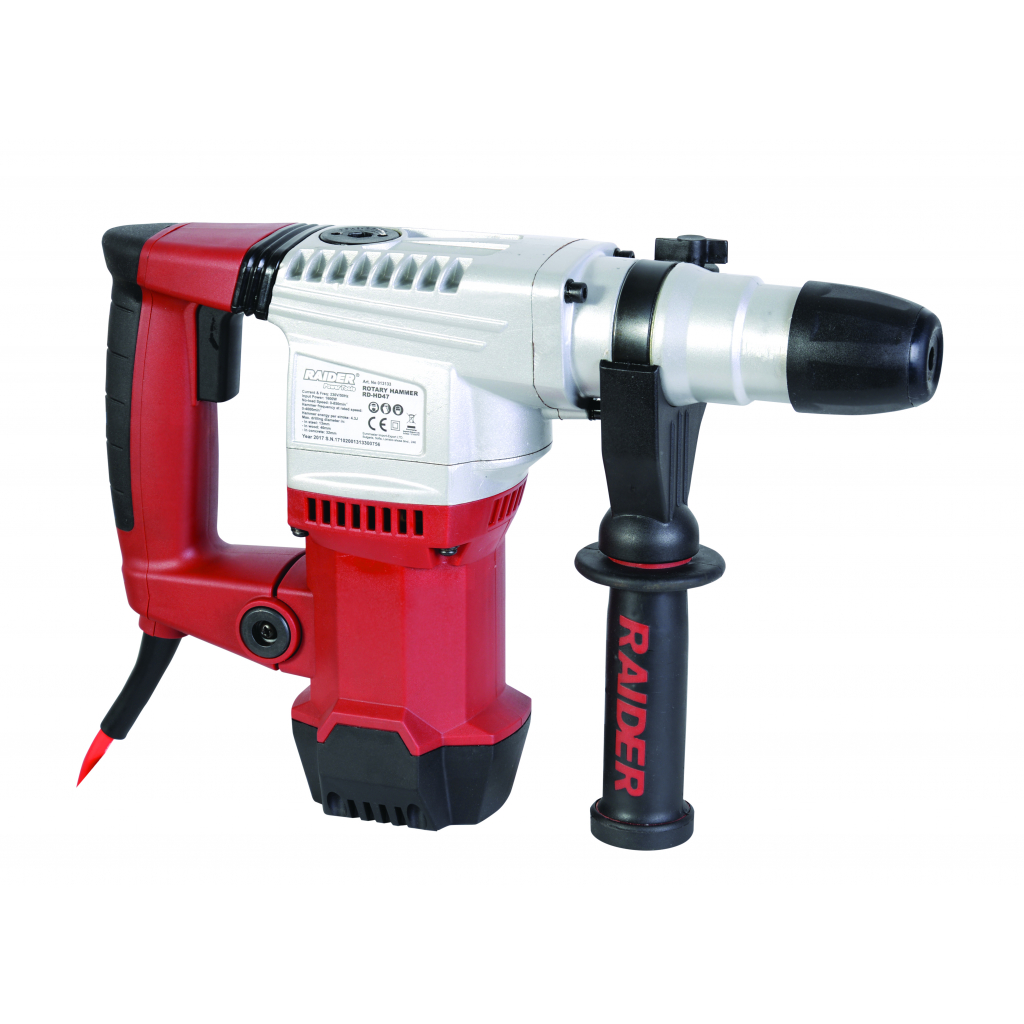

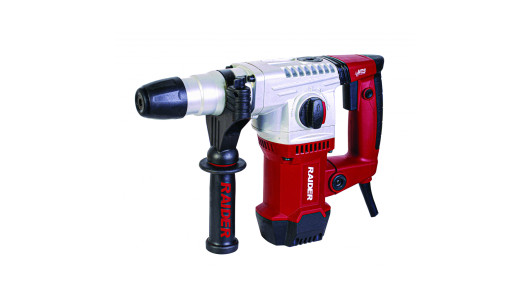

Rotary Hammer 1500W 32mm SDS-plus RD-HD47

  • Operating mode switch
  • SDS+ chuck
  • Anti-vibration system
  • Auxiliary handle
  • Depth gauge
Article number: 013133
Barcode: 3800972001503
Brand: Raider Power Tools
Download:
Presenter
User manual
pictogram
pictogram
pictogram
pictogram
pictogram
pictogram
pictogram
Description
Thanks to its versatile application, Raider rotary hammers are widely popular not only amongst craftsmen but also in the professional construction industry. These tools have an ergonomic design and anti-slip coating that creates a sense of convenience and productivity, even with longer operation. The range of rotary hammers available can satisfy the needs of every user, depending on the requirements and scale of work.

The RD- HD47 rotary hammer combines a powerful motor and a seamless pneumatic mechanism, which together provide reliable drilling, grinding and punching in concrete up to ø32 mm. The model is also equipped with the SDS-Plus system, which allows for quick replacement of accessories.

RD-HD47 also has:

  • Mechanical safety clutch
  • Metal alloy gearbox

  • Side handle for better control of the tool during operation

  • Smooth-shift switch

  • On-off switch

    • Features
    Main characteristics
    Tool grip SDS+
    Maximum single blow energy (epta) 4.3 J
    Maximum drilling ø in concrete 32 mm
    Maximum impact frequency 4700 min-1
    Rated input power 1500 W
    Rated voltage 230 V
    Rated voltage type Corded - Electrical Grid
    Functions Drilling, Hammer Drilling, Chiseling, Rotation
    Additional characteristics
    Cable length 2 m
    Maximum no- load speed 0 - 850 min-1
    Equipment
    Extra handle1 pc.
    Depth limiter1 pc.
    Pointed chisel1 pc.
    Chisel1 pc.
    Drill3 pc.
    Tool case1 pc.
