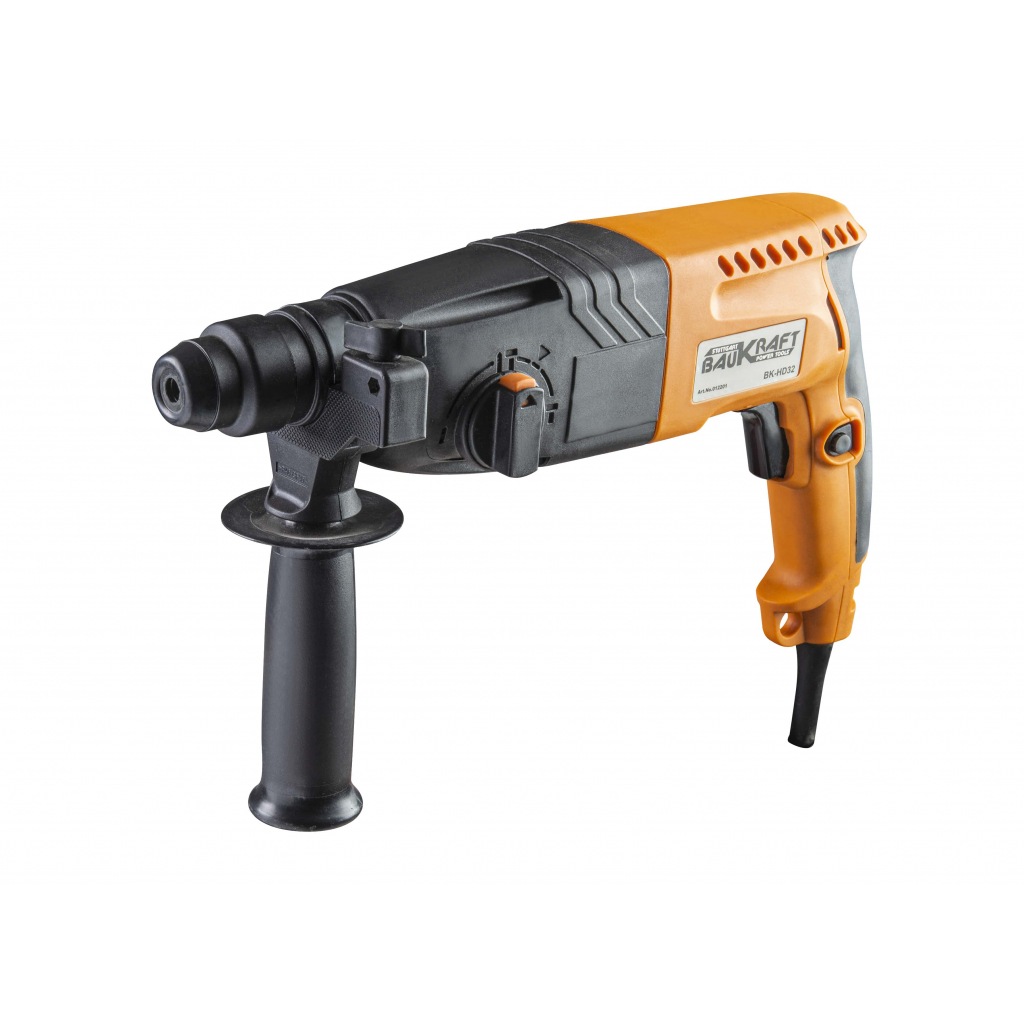

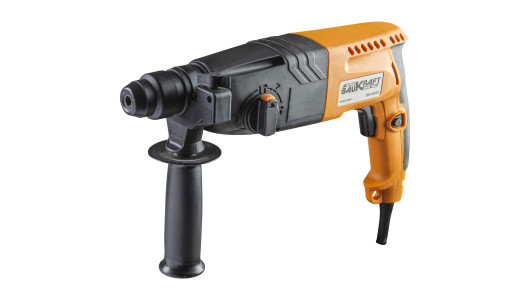

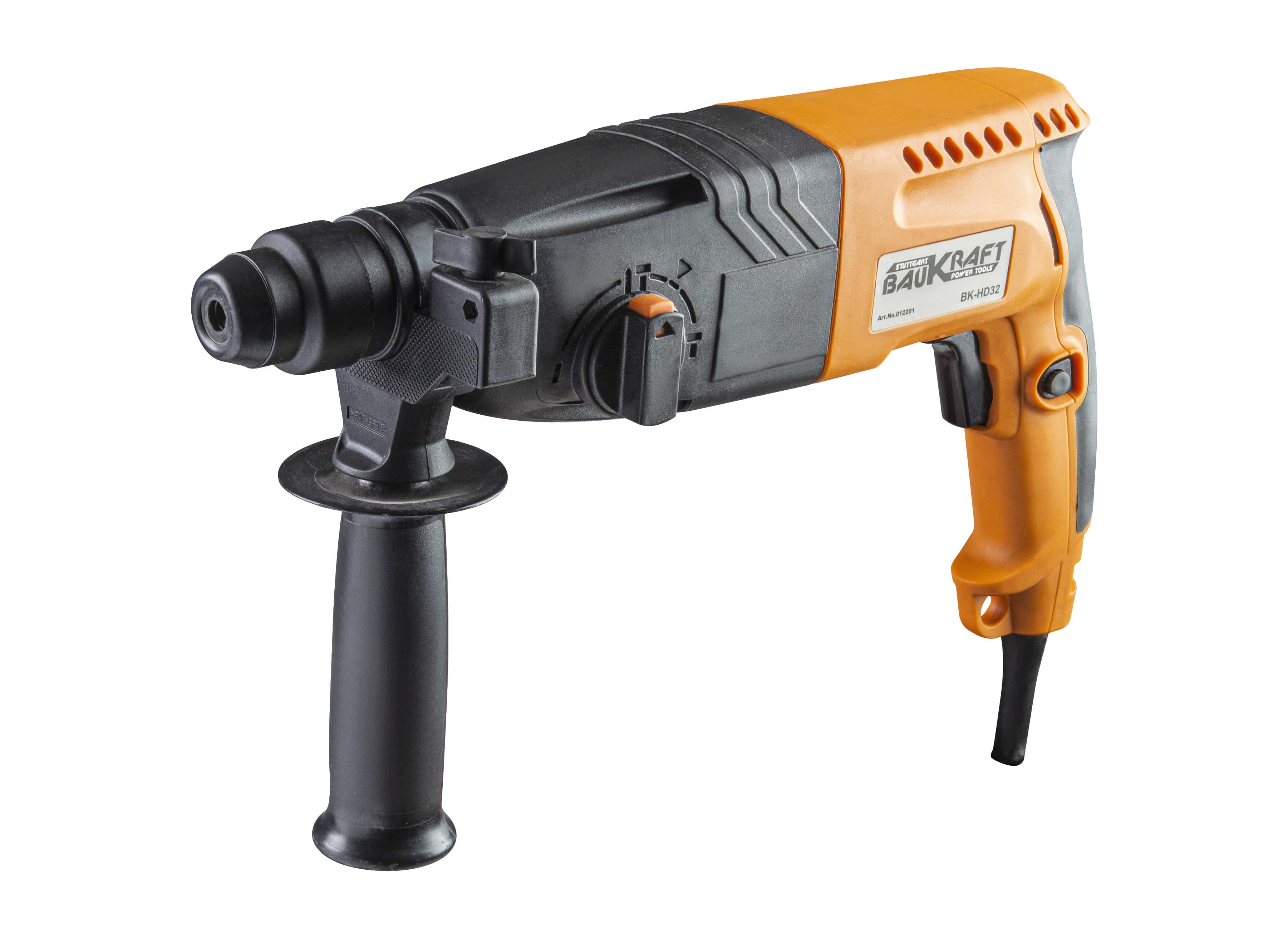

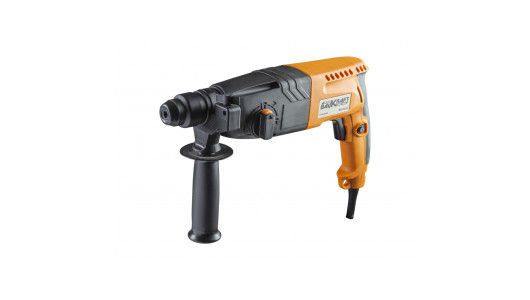

Rotary Hammer 620W 24mm variable speed BK-HD32

  • Operating mode switch
  • SDS+ chuck
  • Adjustable RPM
  • Auxiliary handle
  • Depth gauge
Article number: 012201
Barcode: 3800123163319
Brand: Baukraft
Download:
Presenter
User manual
Description
Thanks to its versatile application, the Baukraft rotary hammers are the preferred choice among home craftsmen.

The BK-HD32 punch combines a powerful motor and a seamless pneumatic mechanism that together provide reliable drilling, hammer drilling, chiselling in concrete up to ø24 mm. The model is also equipped with the SDS-Plus system, which allows for quick replacement of accessories.

The BK-HD32 model has:

  • Reverse function

  • Mechanical clutch guard
  • Metal alloy gearbox

  • Side handle for better control of the tool during operation

    • Features
    Main characteristics
    Tool grip SDS+
    Maximum single blow energy (epta) 2.15 J
    Maximum drilling ø in concrete 24 mm
    Maximum impact frequency 4850 min-1
    Rated input power 620 W
    Rated voltage 230 V
    Rated voltage type Corded - Electrical Grid
    Functions Drilling, Hammer Drilling, Chiseling, Rotation
    Additional characteristics
    Cable length 2 m
    Maximum no- load speed 0 - 870 min-1
    Maximum drilling ø in wood 30 mm
    Maximum drilling ø in steel 13 mm
    Equipment
    Extra handle1 pc.
    Pointed chisel1 pc.
    Flat Chisel1 pc.
    Drills3 pcs.
    Tool case1 pc.
