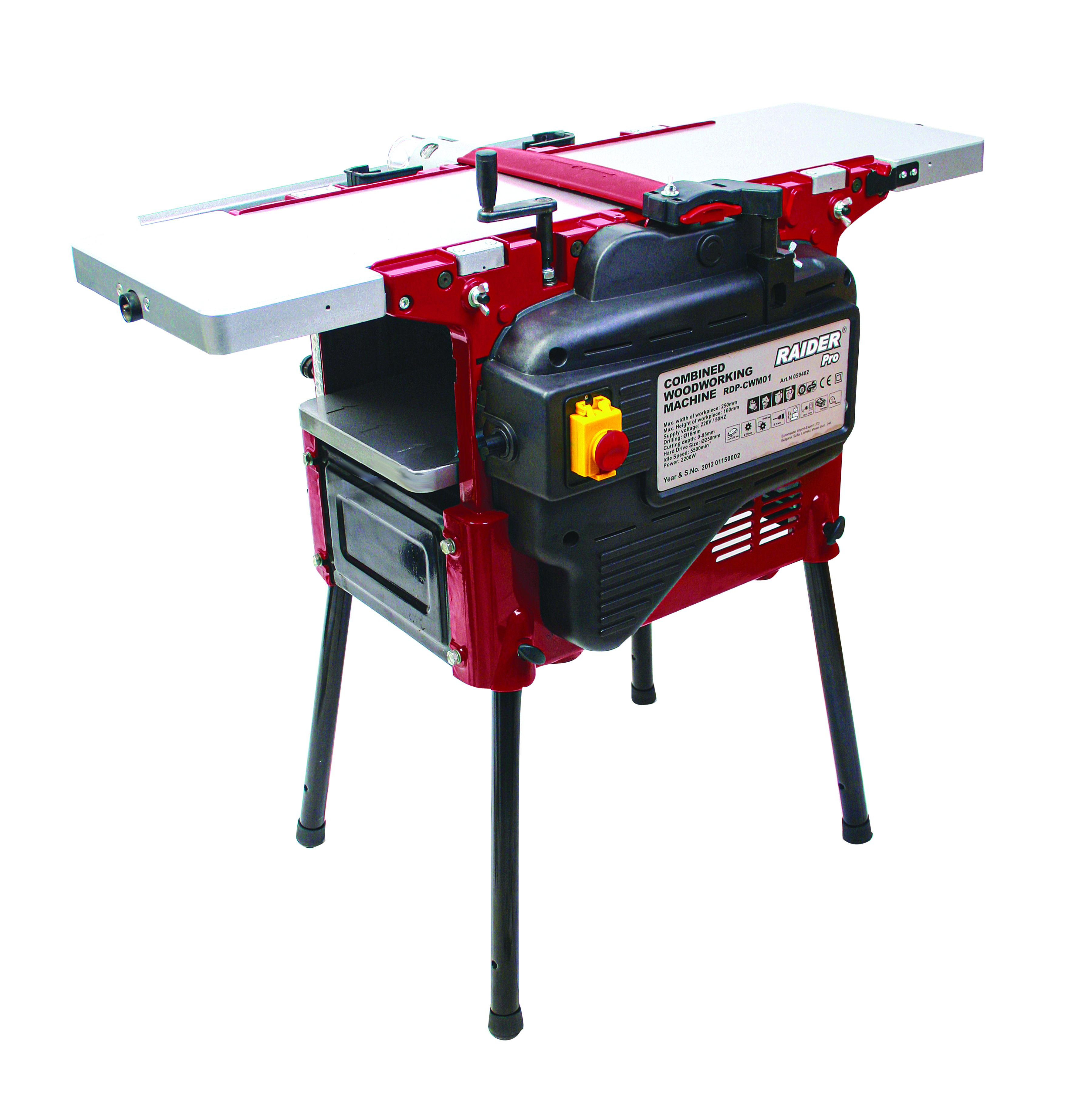

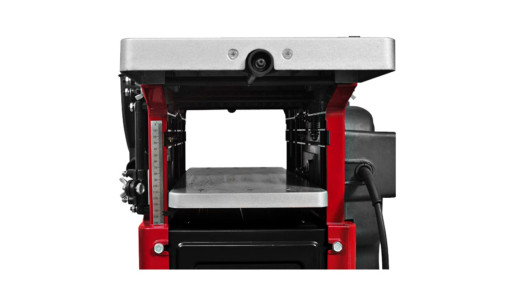

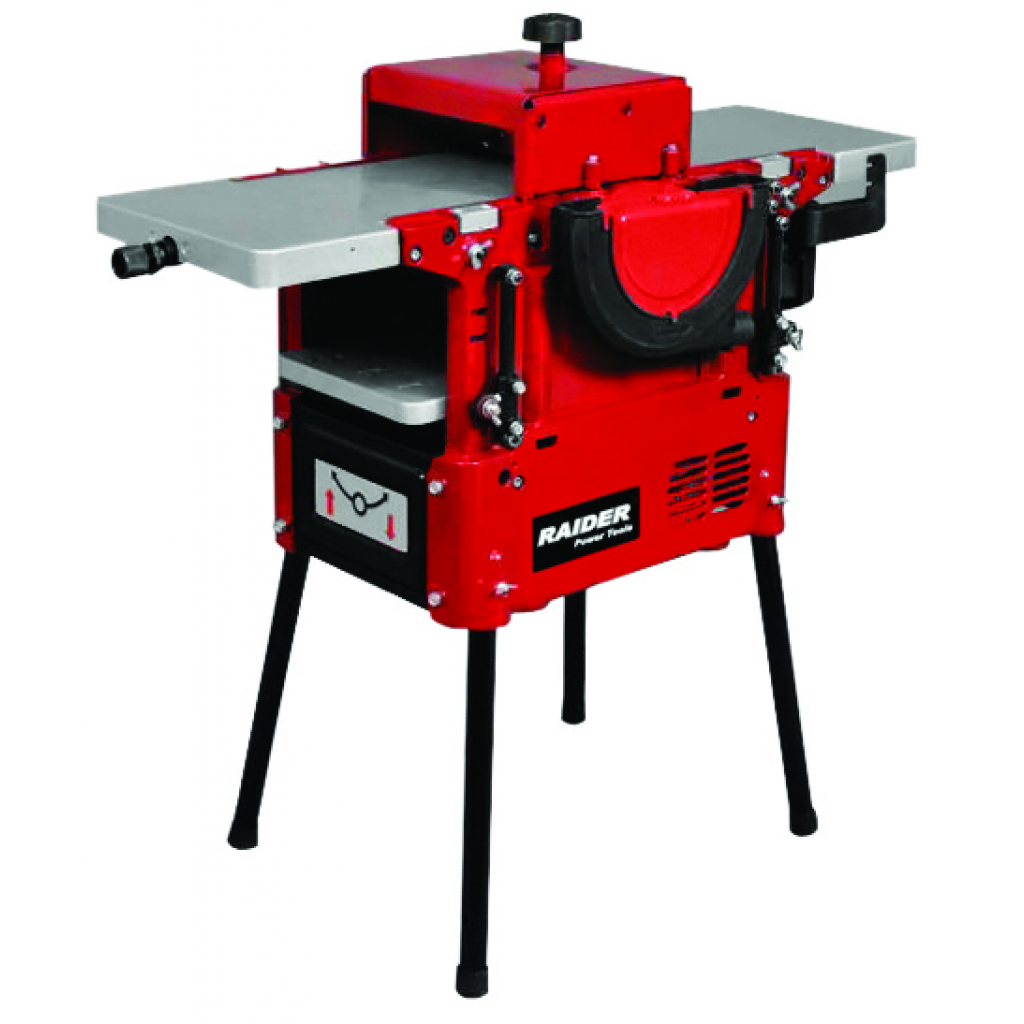

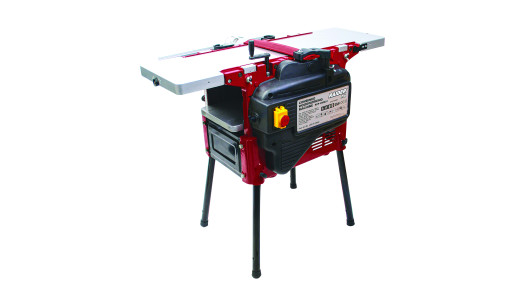

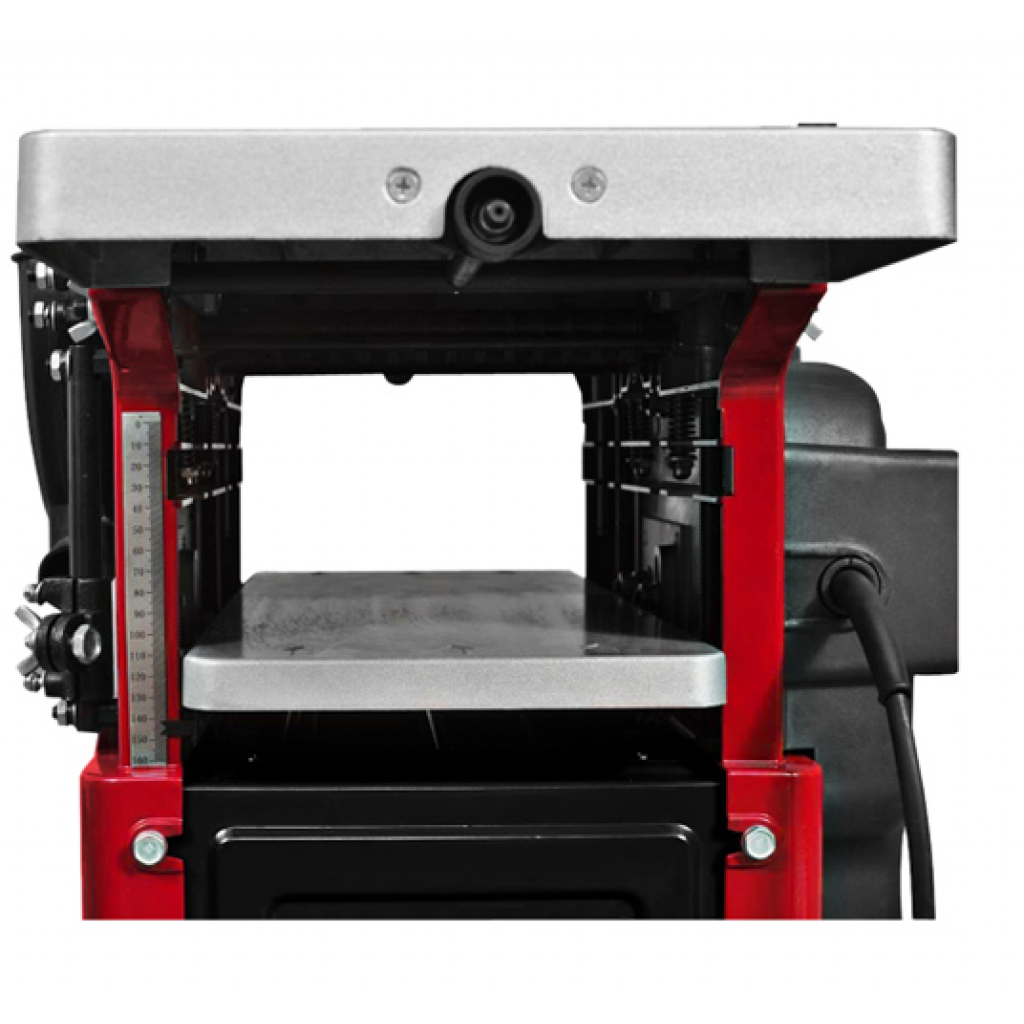

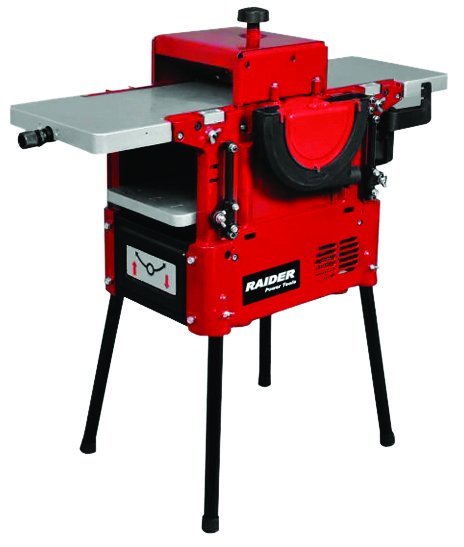

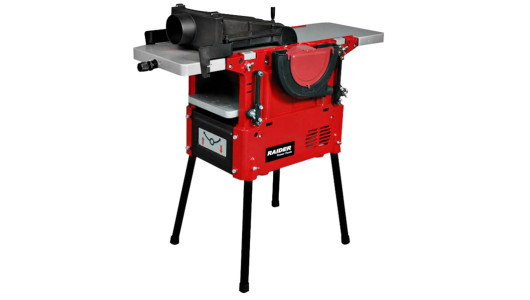

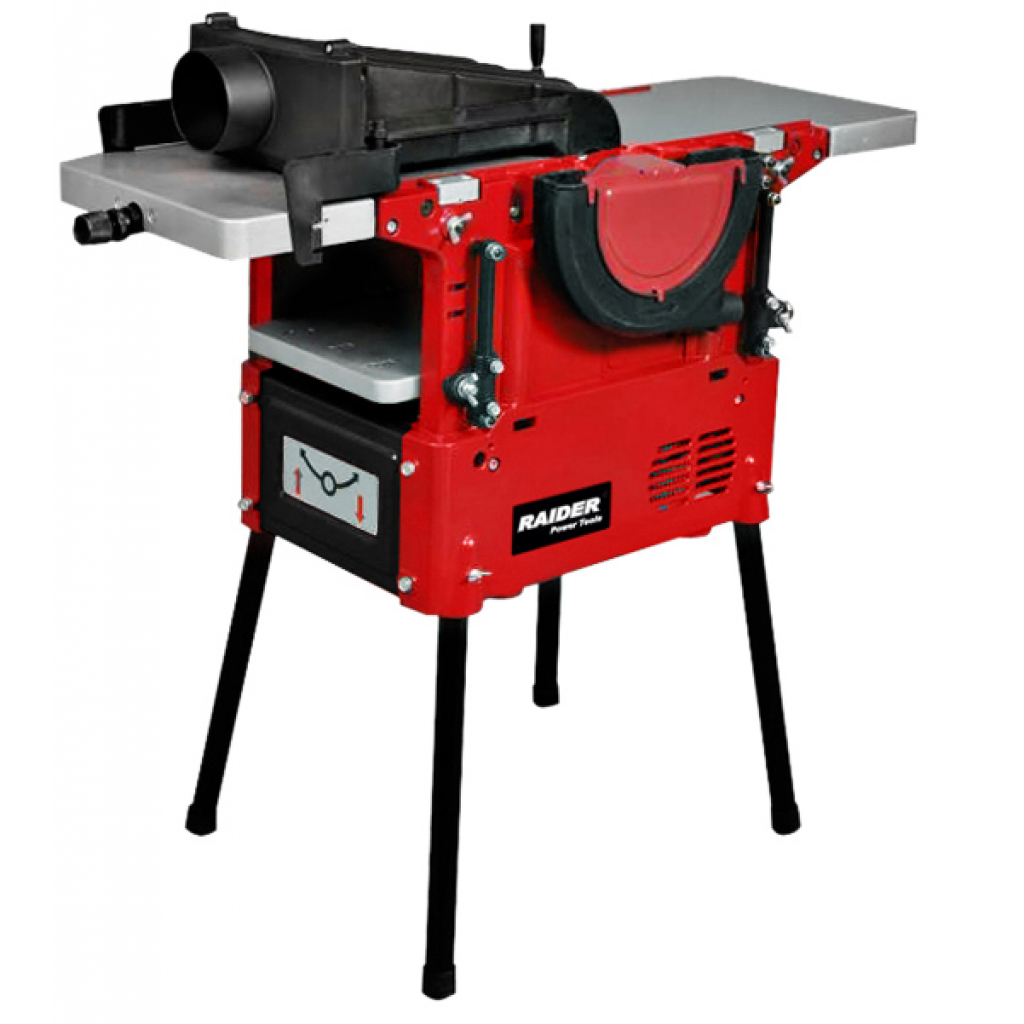

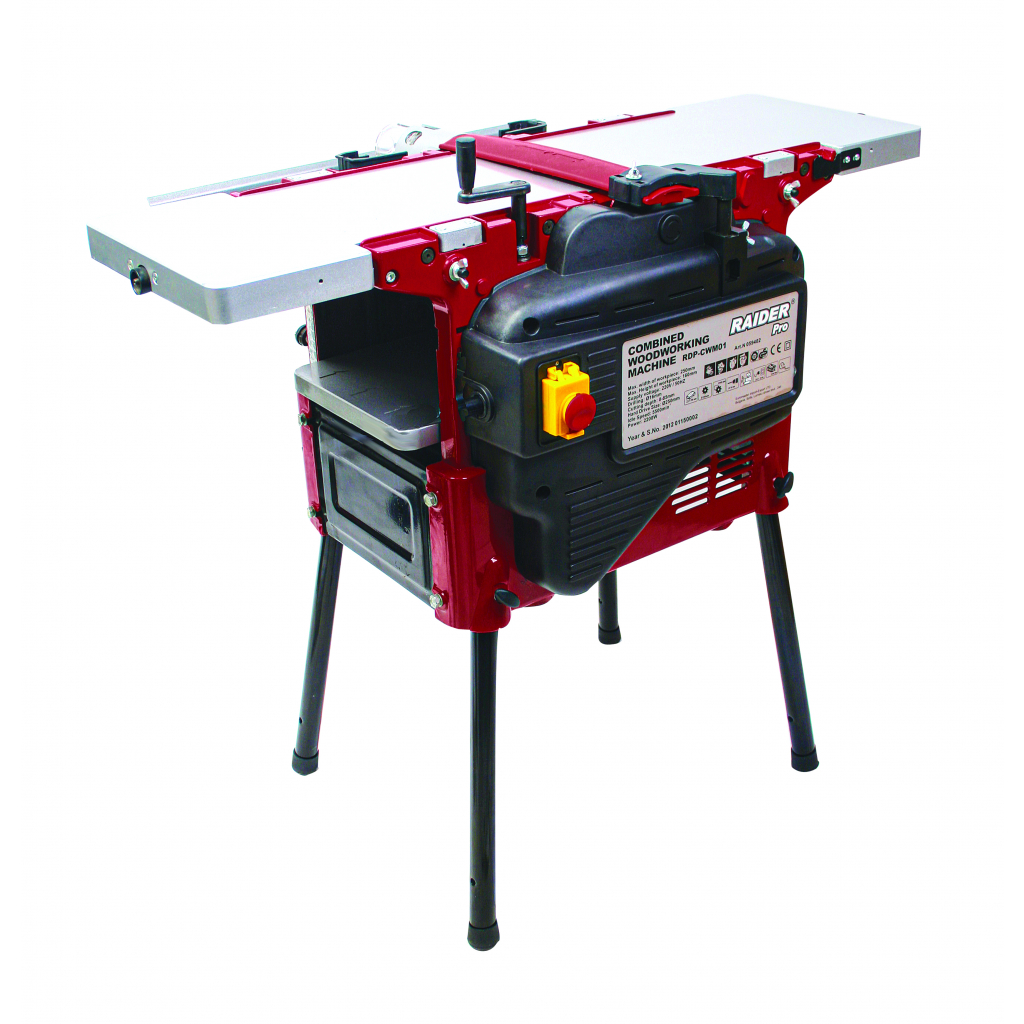

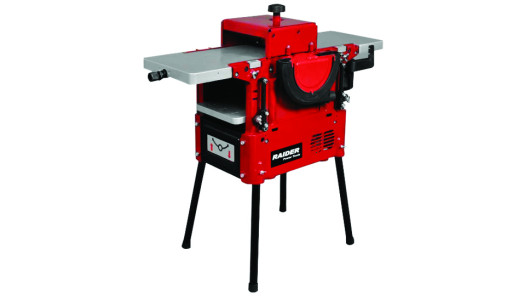

Combined woodworking machine 2200W RDP-CWM01
Combined woodworking machine 2200W RDP-CWM01
- Asynchronous electric motor

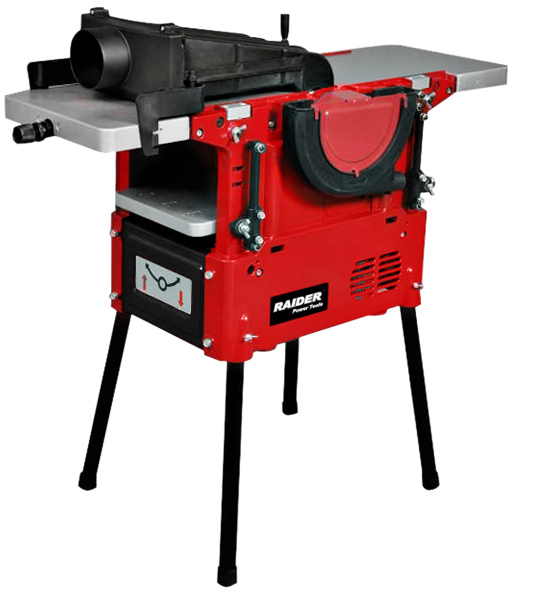

- Dust extraction hole

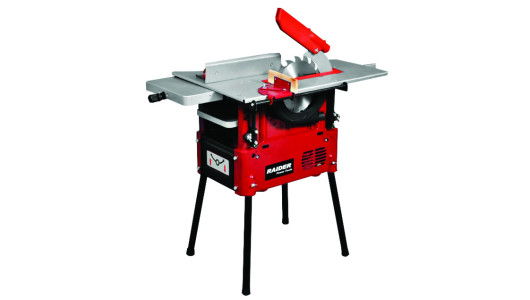

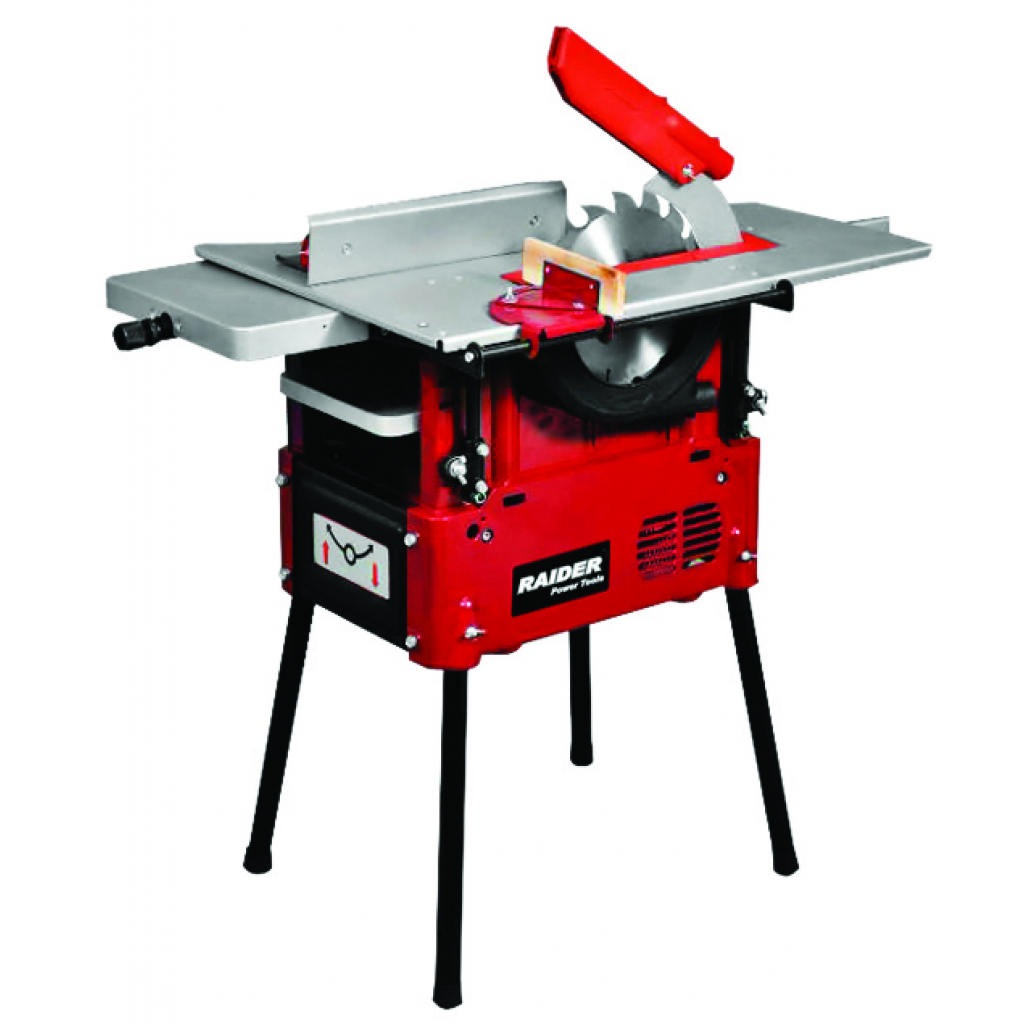

- Cut as a circular saw
- It renders as an abrypt
- Drill holes with a drill bit
- Carved with milling profiles
- It is rendered as a stichmus
- Adjusting the height of the disc
- Linear for parallel cutting
Article number: 059402
Barcode: 3800123158995
Brand: Raider Pro
Barcode: 3800123158995
Brand: Raider Pro
Description
Machines in the Raider Pro series have high performance, improved functionality and a three-year warranty.
The RDP-CWM01 model combines several types of machines. It can:

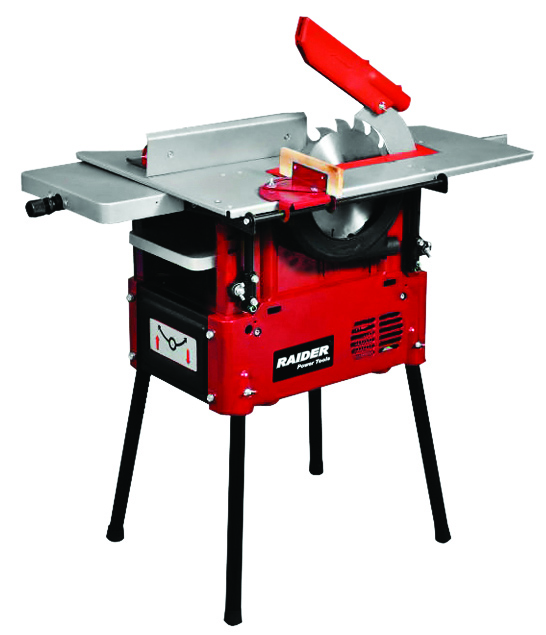

Cut as a circular saw
Planed as an abriht

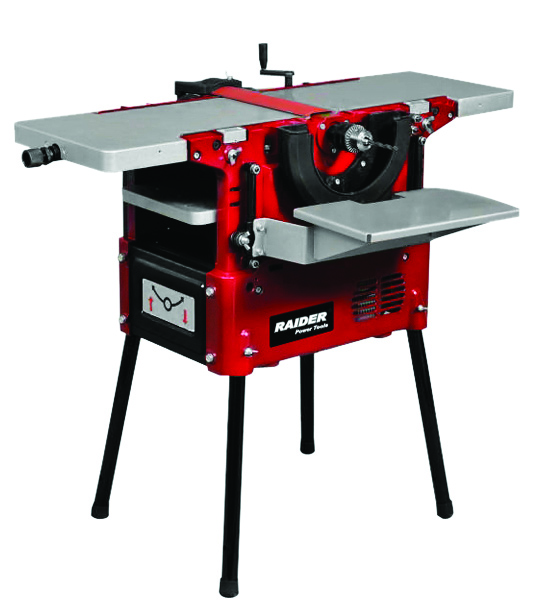

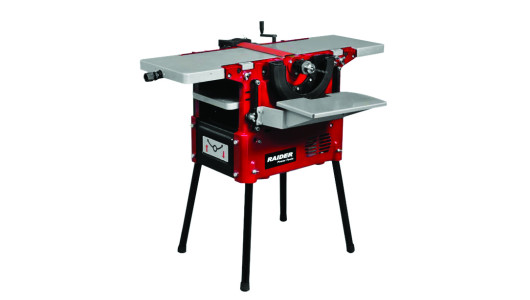

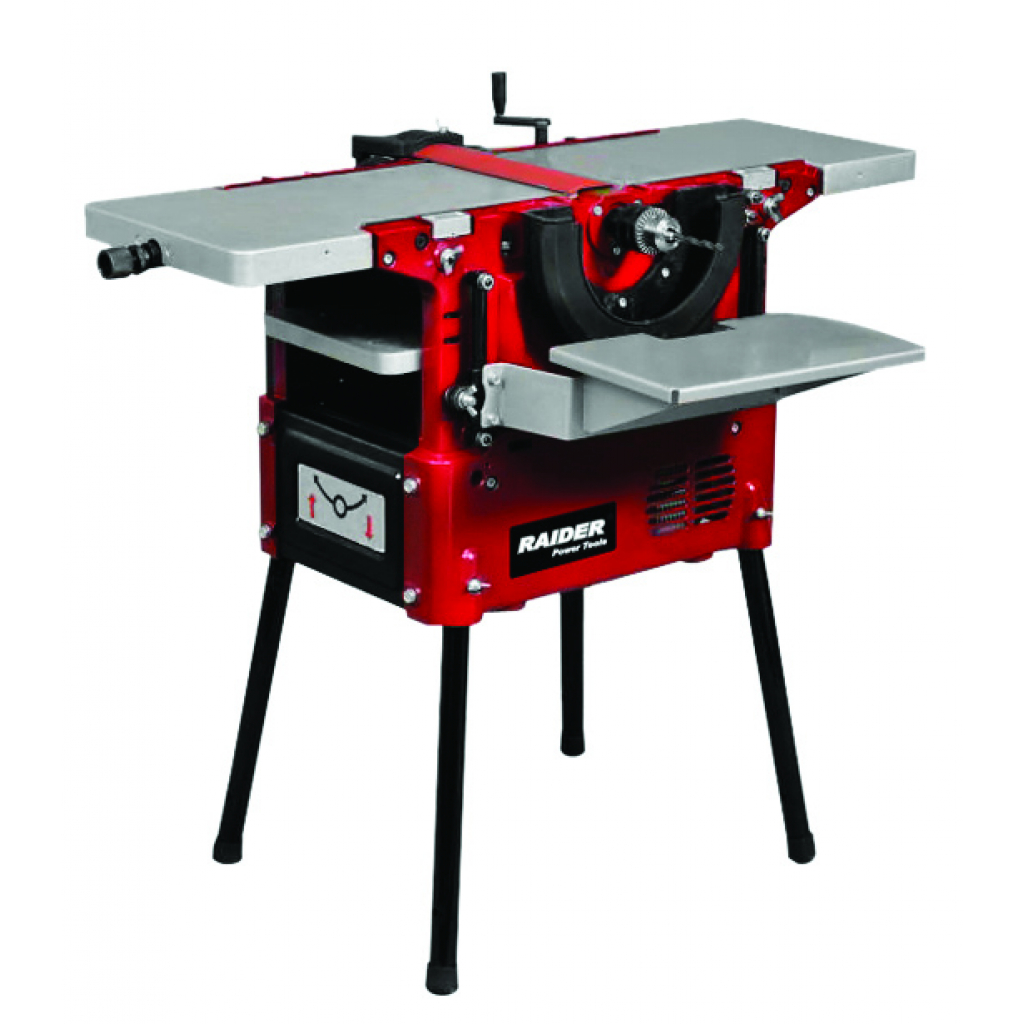

Drill holes like a drill
Drill holes with mills
Rendering as a strikemus

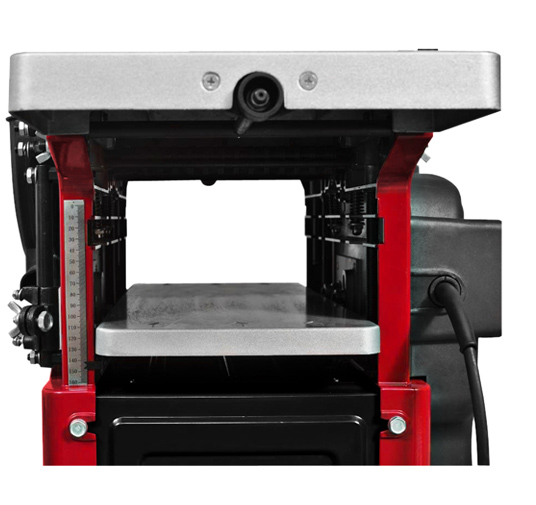

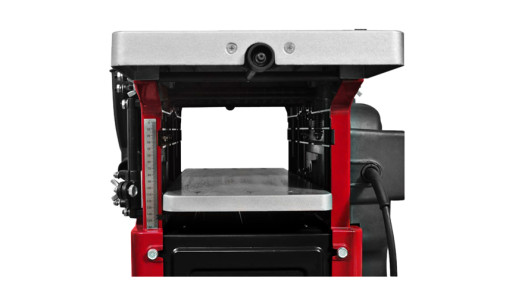

The RDP-CWM01 countertop is made of thin-walled aluminum casting, which provides both the required stability at work but with minimal weight. It has an additional device that facilitates the feed of the board during planing, which eliminates the possibility of approaching the cutting blades.
The RDP-CWM01 model combines several types of machines. It can:
The RDP-CWM01 countertop is made of thin-walled aluminum casting, which provides both the required stability at work but with minimal weight. It has an additional device that facilitates the feed of the board during planing, which eliminates the possibility of approaching the cutting blades.
Features
Main characteristics
| Circular saw disc tilt (°) | 0-30 ° |
| Planer cutting depth (mm) | 0|3.5 mm |
| Size (mm) | 1000x480x480 mm |
| Number of knives | 2 |
| Cable length (m) | 2 m |
| Rated input power (W) | 2200 W |
| Rated voltage (V) | 230 V |
| Outer disc diameter (mm) | 250 mm |
| Inner disc diameter (mm) | 30 mm |
| Planing width (mm) | 305 mm |
| Disc teeth (pcs.) | 42 pcs |
| Maximum no- load speed (min-1) | 5500 min-1 |
| Support surface dimensions (mm) | 750x520 mm |
| Maximum cutting depth -90° / 90° (mm) | 85 mm |
| Rated voltage type | Corded - Electrical Grid |
| Material of the table | Metal |
Equipment
| Carbide Disc (42 teeth) | 1 pc. |
| Disc Replacement Tool | 1 pc. |
| Push stick | 1 pc. |
| Blades | 2 pcs. |
| Chuck | 1 pc. |
| Parallel guide | 1 pc. |
