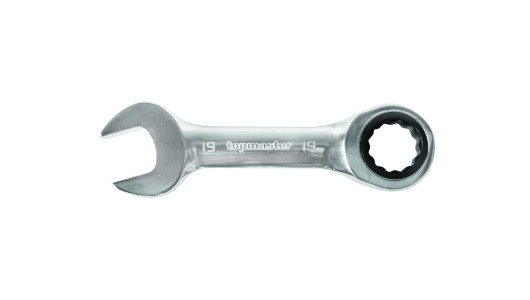

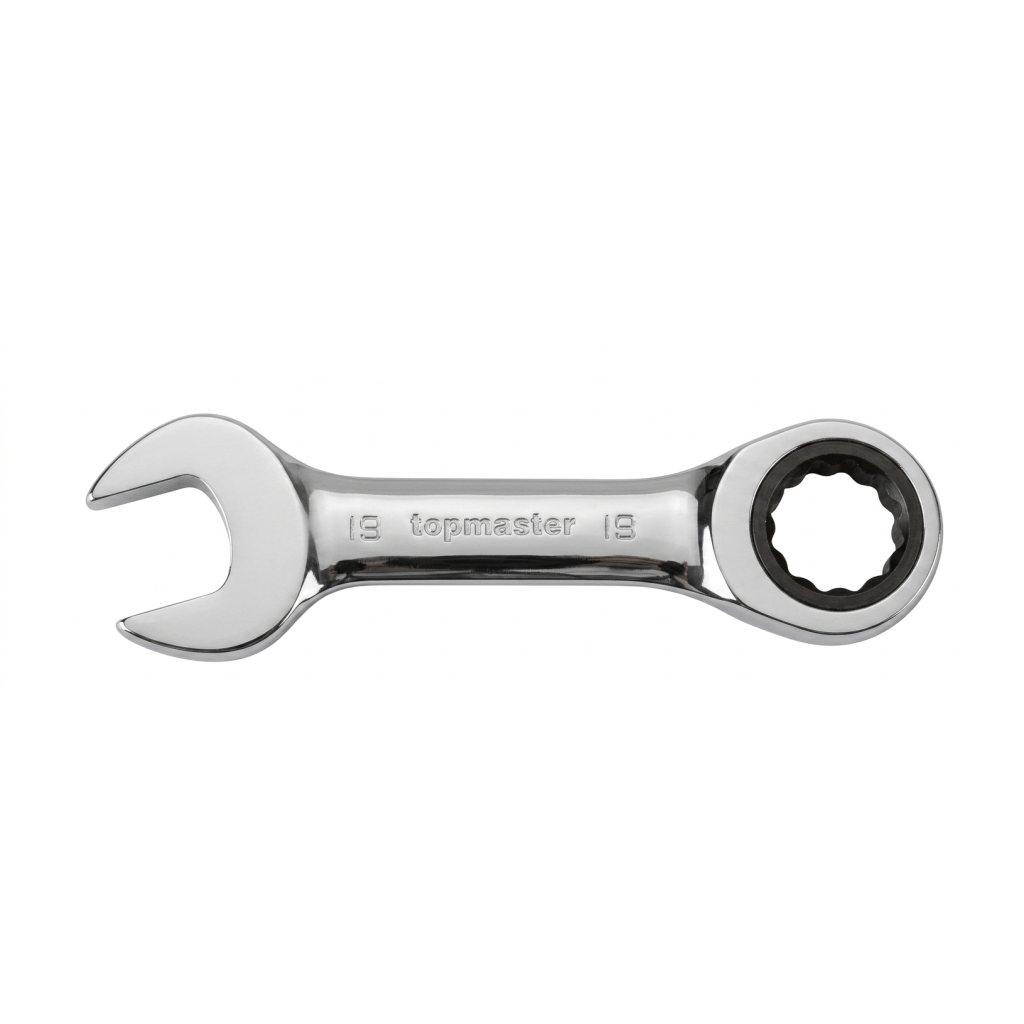

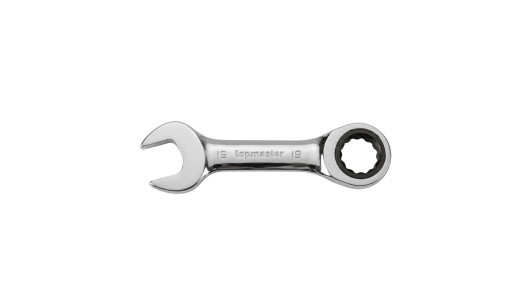

Comb. spanners with ratchet 10mm STUBBY CR-V TMP
Comb. spanners with ratchet 10mm STUBBY CR-V TMP
- The head of the key is inclined 15 °, convenient for work in inaccessible places
- Made of high quality chrome vanadium steel
- Precise 72-tooth ratchet mechanism allowing 5 ° reversible arm angle
- Option to change direction
Article number: 231917
Barcode: 3800123119309
Brand: Top Master Pro
Barcode: 3800123119309
Brand: Top Master Pro
Download:
Warranty (years)
30 years
Wrench thickness W1 (mm)
5.1 mm
Wrench thickness W2 (mm)
7.8 mm
Length (mm)
96 mm
Material
Cr-V
Generation
2nd generation
Size (mm)
10 mm
Ratchet mechanism (tooth)
72 tooth
Spanner width D1 (mm)
22 mm
Spanner width D2 (mm)
21.5 mm
Coating
Mirror Polish
Series
| Art. Number | Product | Coating | Generation | Length (mm) | Material | Ratchet mechanism (tooth) | Size (mm) | Spanner width D1 (mm) | Spanner width D2 (mm) | Warranty (years) | Wrench thickness W1 (mm) | Wrench thickness W2 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 231917 |
Top Master Pro Comb. spanners with ratchet 10mm STUBBY CR-V TMP |
Mirror Polish | 2nd generation | 96 mm | Cr-V | 72 tooth | 10 mm | 22 mm | 21.5 mm | 30 years | 5.1 mm | 7.8 mm |
| 231918 |
Top Master Pro Comb. spanners with ratchet 13mm STUBBY CR-V TMP |
Mirror Polish | 2nd generation | 115 mm | Cr-V | 72 tooth | 13 mm | 28 mm | 26.4 mm | 30 years | 6.4 mm | 9.1 mm |
| 231919 |
Top Master Pro Comb. spanners with ratchet 17mm STUBBY CR-V TMP |
Mirror Polish | 2nd generation | 132 mm | Cr-V | 72 tooth | 17 mm | 37 mm | 33 mm | 30 years | 8 mm | 10.5 mm |
| 231920 |
Top Master Pro Comb. spanners with ratchet 19mm STUBBY CR-V TMP |
Mirror Polish | 2nd generation | 138 mm | Cr-V | 72 tooth | 19 mm | 40.8 mm | 36.5 mm | 30 years | 8.4 mm | 11.2 mm |
Description
The professional hand tools of Topmaster combine exceptional design, quality & long service life.
Topmaster's 10 mm "STUBBY" Combination spanners with ratchet features:
Made of cold stamped high quality chrome-vanadium steel (Cr-V)
Chrome-nickel anti-corrosion coating
Precise ratchet mechanism with 72 teeth allowing reversible shoulder angle of 5 °
60% more compact than standard wrenches
Topmaster's 10 mm "STUBBY" Combination spanners with ratchet features:
Features
Main characteristics
| Size (mm) | 10 mm |
| Spanner width D2 (mm) | 21.5 mm |
| Spanner width D1 (mm) | 22 mm |
| Generation | 2nd generation |
| Warranty (years) | 30 years |
| Wrench thickness W1 (mm) | 5.1 mm |
| Wrench thickness W2 (mm) | 7.8 mm |
| Ratchet mechanism (tooth) | 72 tooth |
| Length (mm) | 96 mm |
| Material | Cr-V |
| Coating | Mirror Polish |
