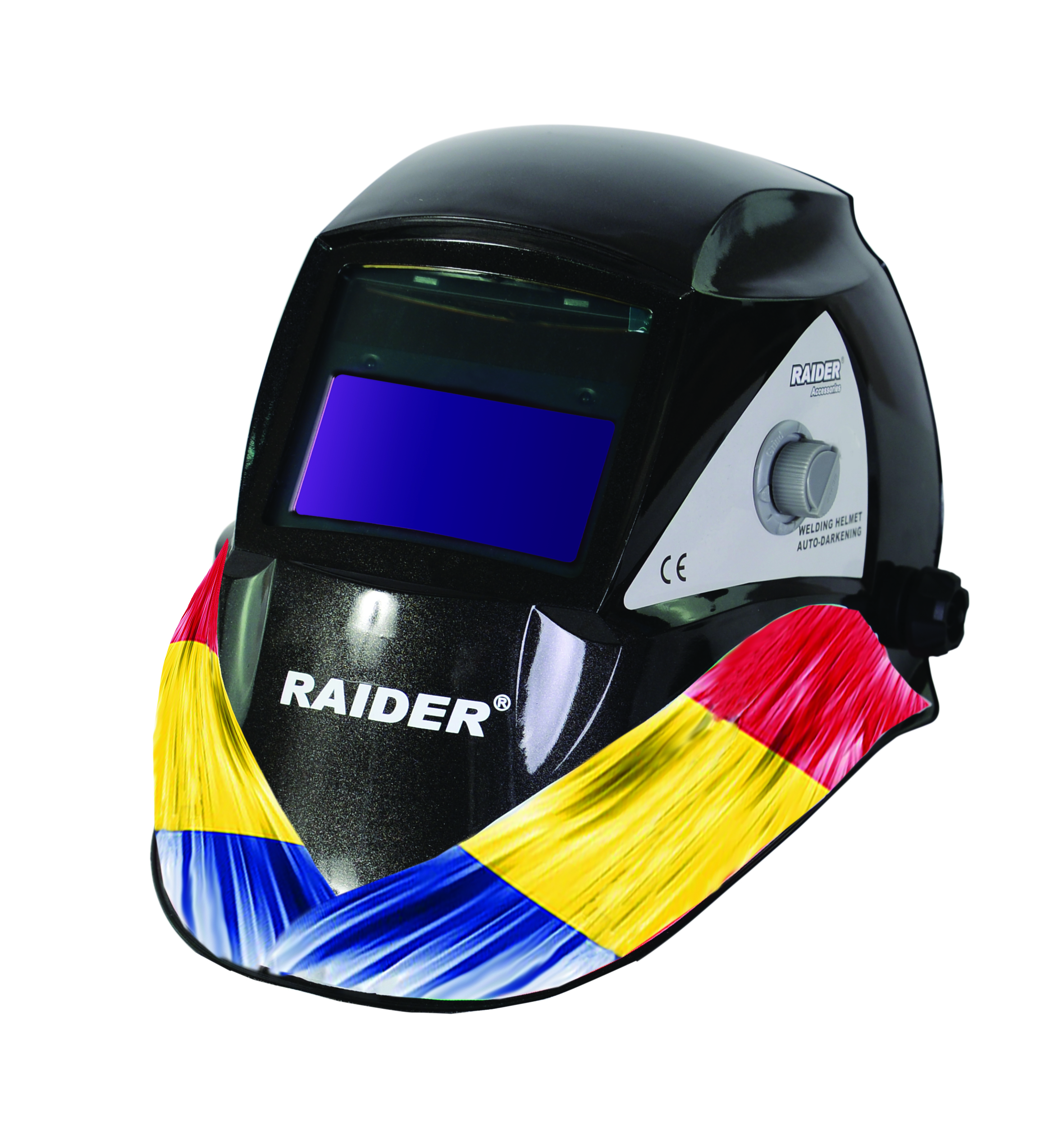

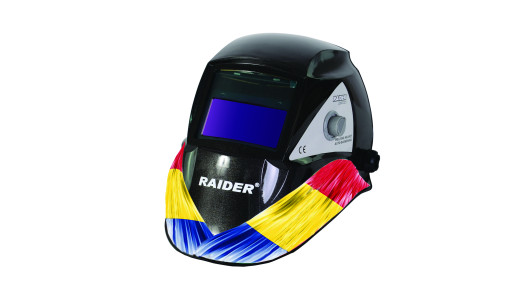

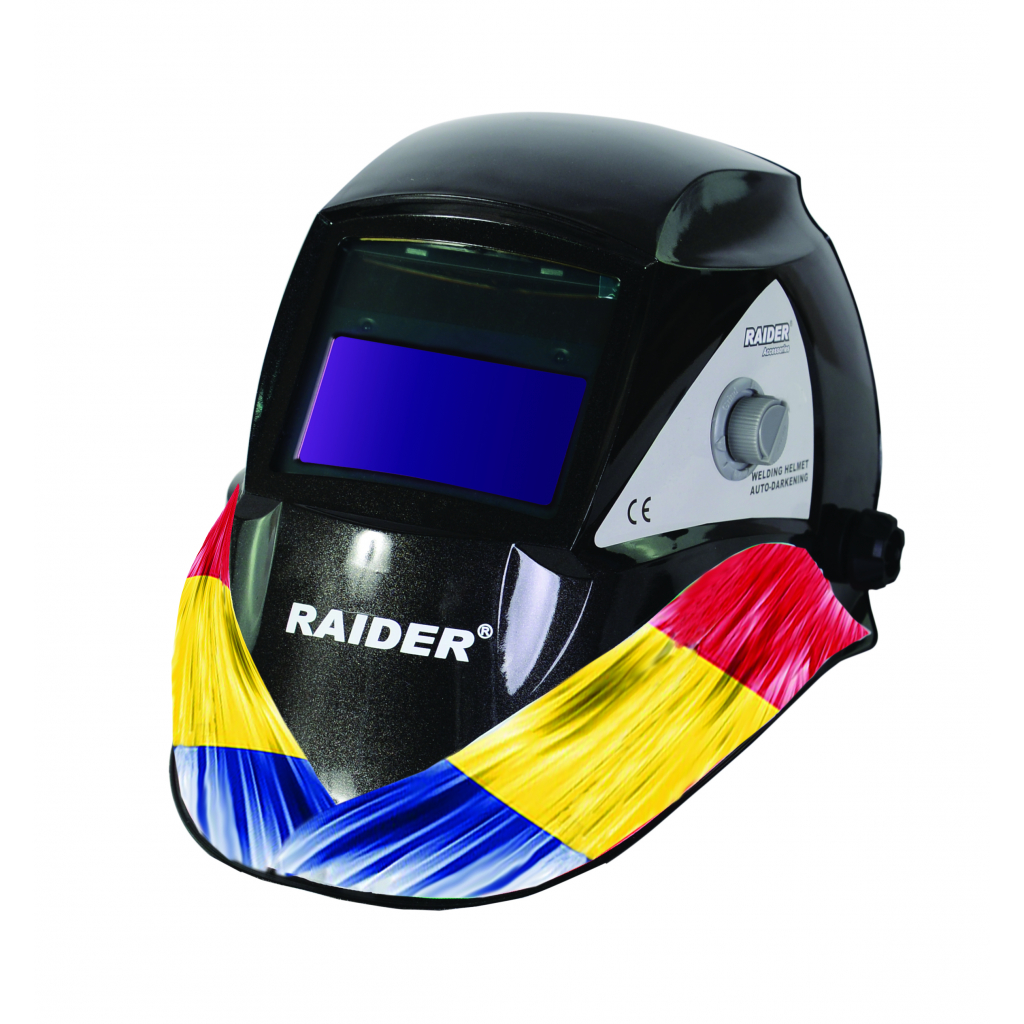

Welding Helmet DIN 9-13 RO Grinding design RD-WH04
Welding Helmet DIN 9-13 RO Grinding design RD-WH04
- Eclipse adjustment
- Possibility to turn on / off the filter
Article number: 138309
Barcode: 3800972010260
Brand: Raider Power Tools
Barcode: 3800972010260
Brand: Raider Power Tools
Download:
Description
Welding of metals is associated with a large number of dangerous and harmful factors, bright light of the electric arc, ultraviolet and infrared rays, hot metal and slag, toxic aerosols and gases.
One of the most important means of protecting the welder from these factors is the RAIDER welding mask The model photosolar helmet RD-WH04 has:
Dimming adjustment
Ability to turn on / off the filter depending on the brightness of the arc and the light emission of the hot metal
One of the most important means of protecting the welder from these factors is the RAIDER welding mask The model photosolar helmet RD-WH04 has:
Features
Main characteristics
| Uv/ir protection (DIN) | 16 DIN |
| Light to dark adaptation time (sec) | 0.2|1.0 sec |
| Material | PP |
| Operating temperature (°C) | -10|55 °C |
| Packing (pcs.) | 1 pcs |
| Sensor | 2 |
| Dark shade state (DIN) | 9-13 DIN |
| Storage temperature (°C) | -20|70 °C |
| Rated voltage type | Solar Cells + Li-Ion Battery |
| In accordance with | CE EN175 EN379 |
| Turing on & off | Automatically |
| Switching time (sec) | 1/25000 sec |
| Tig range (amps/DC; amps/AC) | ≥ 35; ≥ 15 amps/DC; amps/AC |
| Optical class | 1/1/1/2 |
| Light shade state (DIN) | 4 DIN |
| View size (mm) | 92x42 mm |
| View size (mm) | 110x90 mm |
| Filter dimensions (mm) | 110x90x9 mm |
| Sensitivity control | Outer Side Smooth Adjustment From Low To High |
