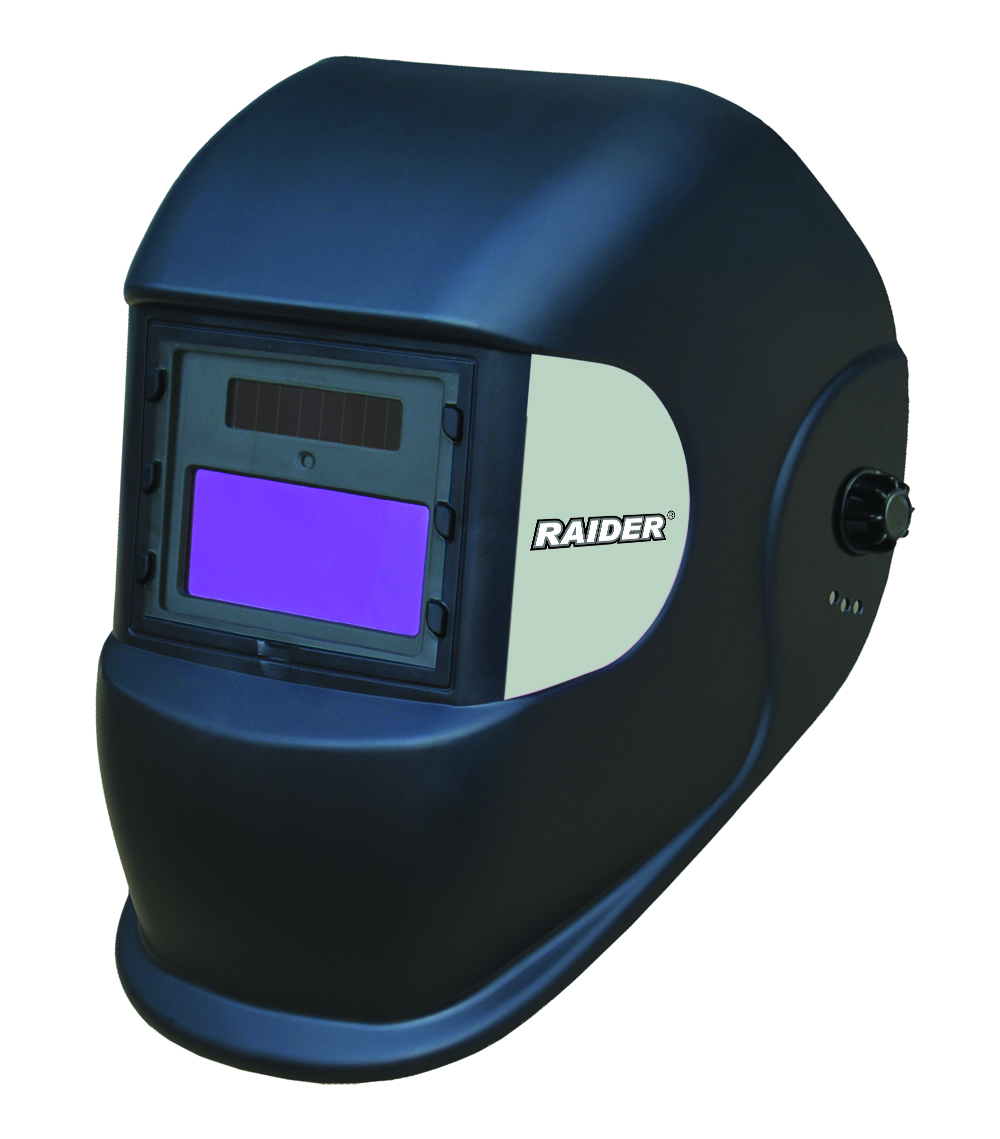

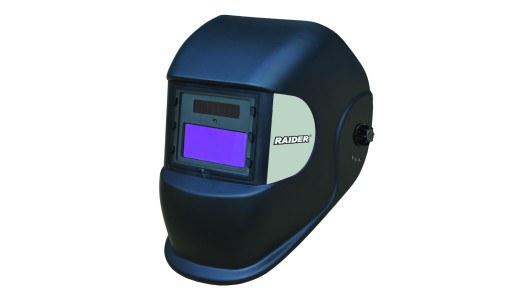

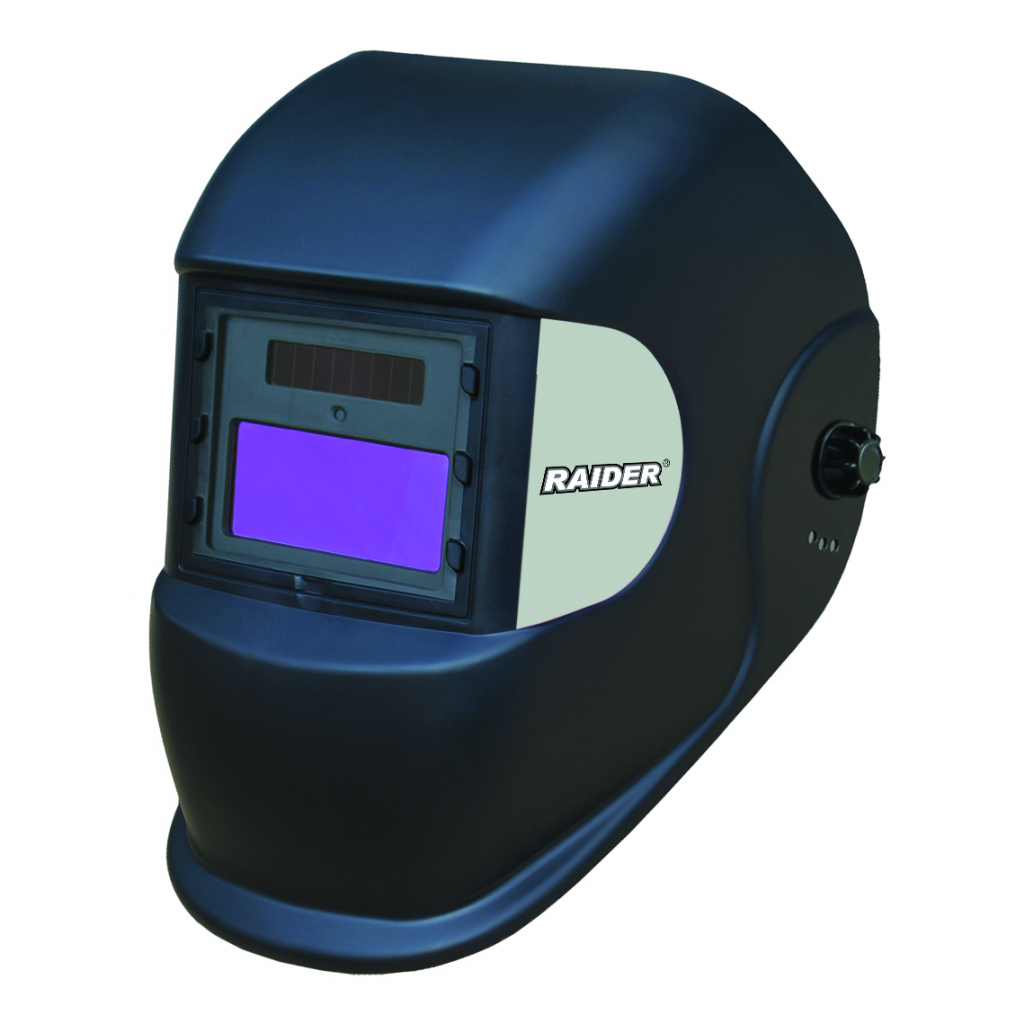

Welding Helmet auto-darkening DIN 8/10/12 RD-WH01
Welding Helmet auto-darkening DIN 8/10/12 RD-WH01
- Dimming control
- Fully automatic on and off
- Photosolar + Lithium-ion battery power supply
Article number: 138301
Barcode: 3800123174278
Brand: Raider Power Tools
Barcode: 3800123174278
Brand: Raider Power Tools
Download:
Description
Welding of metals is associated with a large number of dangerous and harmful factors, bright light of the electric arc, ultraviolet and infrared rays, hot metal and slag, toxic aerosols and gases.
One of the most important means of protecting the welder from these factors is the RAIDER welding helmet RD-WH01 has:
Dimming adjustment
Possibility to turn on / off the filter depending on the brightness of the arc and the light radiation of the hot metal
Photosolar + Lithium-ion battery power supply
One of the most important means of protecting the welder from these factors is the RAIDER welding helmet RD-WH01 has:
Features
Main characteristics
| UV/IR защита (DIN) | 16 DIN |
| Operating temperature (°C) | -10 °C |
| Storage temperature (°C) | -20 °C |
| Tig range (amps/DC; amps/AC) | ≥ 35; ≥ 15 amps/DC; amps/AC |
| Light to dark adaptation time (sec) | 0.2 sec |
| Light to dark adaptation time (sec) | 0.5 sec |
| Optical class | 1/1/1/2 |
| Switching time (sec) | 1/25000 sec |
| Sensor | 1 |
| Packing (pcs.) | 1 pcs |
| Dark shade state (DIN) | 10 DIN |
| Filter dimensions (mm) | 110x90x9 mm |
| View size (mm) | 113x89 mm |
| Dark shade state (DIN) | 12 DIN |
| Uv/ir protection (DIN) | 16 DIN |
| Light shade state (DIN) | 4 DIN |
| Operating temperature (°C) | 55 °C |
| Storage temperature (°C) | 70 °C |
| Dark shade state (DIN) | 8 DIN |
| View size (mm) | 92x42 mm |
| Turing on & off | Automatically |
| In accordance with | CE EN175 EN379 |
| Sensitivity control | Inner Side Adjustment From Low To High |
| Material | PP |
| Rated voltage type | Solar Cells + Li-Ion Battery |
