  • Made of chrome vanadium steel
  • Polished head
Article number: 230741
Barcode: 3800123172434
Brand: Gadget

Wrench thickness W1 (mm)
14.7 mm
Wrench thickness W2 (mm)
9.6 mm
Length (mm)
335 mm
Material
Cr-V
Offset ring @ (°)
15 °
Size (mm)
30 mm
Reverse
No
Spanner width D1 (mm)
43.4 mm
Spanner width D2 (mm)
61 mm
Coating
Matte
Series
Art. Number Product Coating Length (mm) Material Offset ring @ (°) Reverse Size (mm) Spanner width D1 (mm) Spanner width D2 (mm) Wrench thickness W1 (mm) Wrench thickness W2 (mm)
230723 Gadget
Combination Spanners CR-V 6mm GD
Matte 100 mm Cr-V 15 ° No 6 mm 10.5 mm 14.3 mm 5.5 mm 4 mm
230724 Gadget
Combination Spanners CR-V 7mm GD
Matte 110 mm Cr-V 15 ° No 7 mm 11.9 mm 15.8 mm 5.5 mm 3.8 mm
230725 Gadget
Combination Spanners CR-V 8mm GD
Matte 120 mm Cr-V 15 ° No 8 mm 12.7 mm 13.5 mm 5.7 mm 3.8 mm
230726 Gadget
Combination Spanners CR-V 9mm GD
Matte 130 mm Cr-V 15 ° No 9 mm 14.3 mm 19.7 mm 5.7 mm 4.2 mm
230727 Gadget
Combination Spanners CR-V 10mm GD
Matte 140 mm Cr-V 15 ° No 10 mm 15.8 mm 22.2 mm 6.9 mm 4.2 mm
230728 Gadget
Combination Spanners CR-V 11mm GD
Matte 150 mm Cr-V 15 ° No 11 mm 17.5 mm 23.5 mm 6.9 mm 4.8 mm
230729 Gadget
Combination Spanners CR-V 12mm GD
Matte 160 mm Cr-V 15 ° No 12 mm 18.6 mm 25.7 mm 7 mm 5.6 mm
230730 Gadget
Combination spanners CR-V 13mm GD
Matte 170 mm Cr-V 15 ° No 13 mm 20.6 mm 27 mm 7.9 mm 5.8 mm
230731 Gadget
Combination spanners CR-V 14mm GD
Matte 180 mm Cr-V 15 ° No 14 mm 22.1 mm 30 mm 8.5 mm 5.9 mm
230732 Gadget
Combination spanners CR-V 15mm GD
Matte 190 mm Cr-V 15 ° No 15 mm 23.7 mm 31.7 mm 8.9 mm 5.9 mm
230733 Gadget
Combination spanners CR-V 16mm GD
Matte 200 mm Cr-V 15 ° No 16 mm 24.2 mm 33 mm 8.9 mm 5.9 mm
230734 Gadget
Combination spanners CR-V 17mm GD
Matte 210 mm Cr-V 15 ° No 17 mm 26.1 mm 35.6 mm 9.2 mm 6.7 mm
230735 Gadget
Combination spanners CR-V 18mm GD
Matte 220 mm Cr-V 15 ° No 18 mm 27.9 mm 37.8 mm 9.5 mm 6.7 mm
230736 Gadget
Combination spanners CR-V 19mm GD
Matte 230 mm Cr-V 15 ° No 19 mm 28.6 mm 40 mm 10.8 mm 6.7 mm
230737 Gadget
Combination spanners CR-V 21mm GD
Matte 250 mm Cr-V 15 ° No 21 mm 31.7 mm 43 mm 10.6 mm 6.7 mm
230738 Gadget
Combination spanners CR-V 22mm GD
Matte 260 mm Cr-V 15 ° No 22 mm 31.9 mm 44.8 mm 11.5 mm 7.3 mm
230739 Gadget
Combination spanners CR-V 24mm GD
Matte 280 mm Cr-V 15 ° No 24 mm 35.3 mm 52 mm 11.6 mm 7.4 mm
230740 Gadget
Combination spanners CR-V 27mm GD
Matte 305 mm Cr-V 15 ° No 27 mm 39.1 mm 56.7 mm 13.3 mm 8.4 mm
230741 Gadget

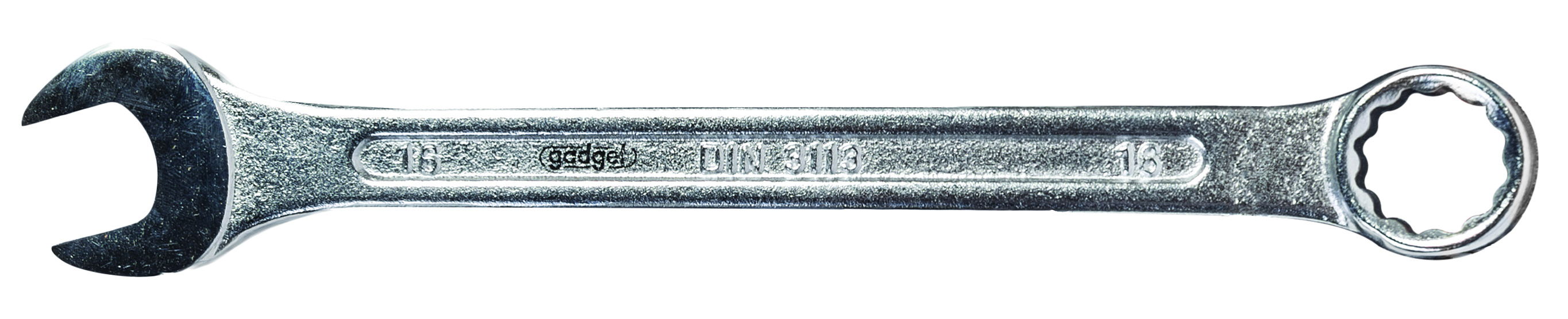

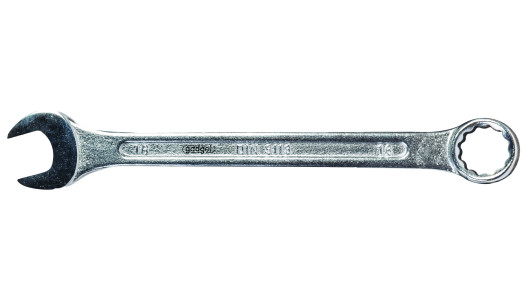

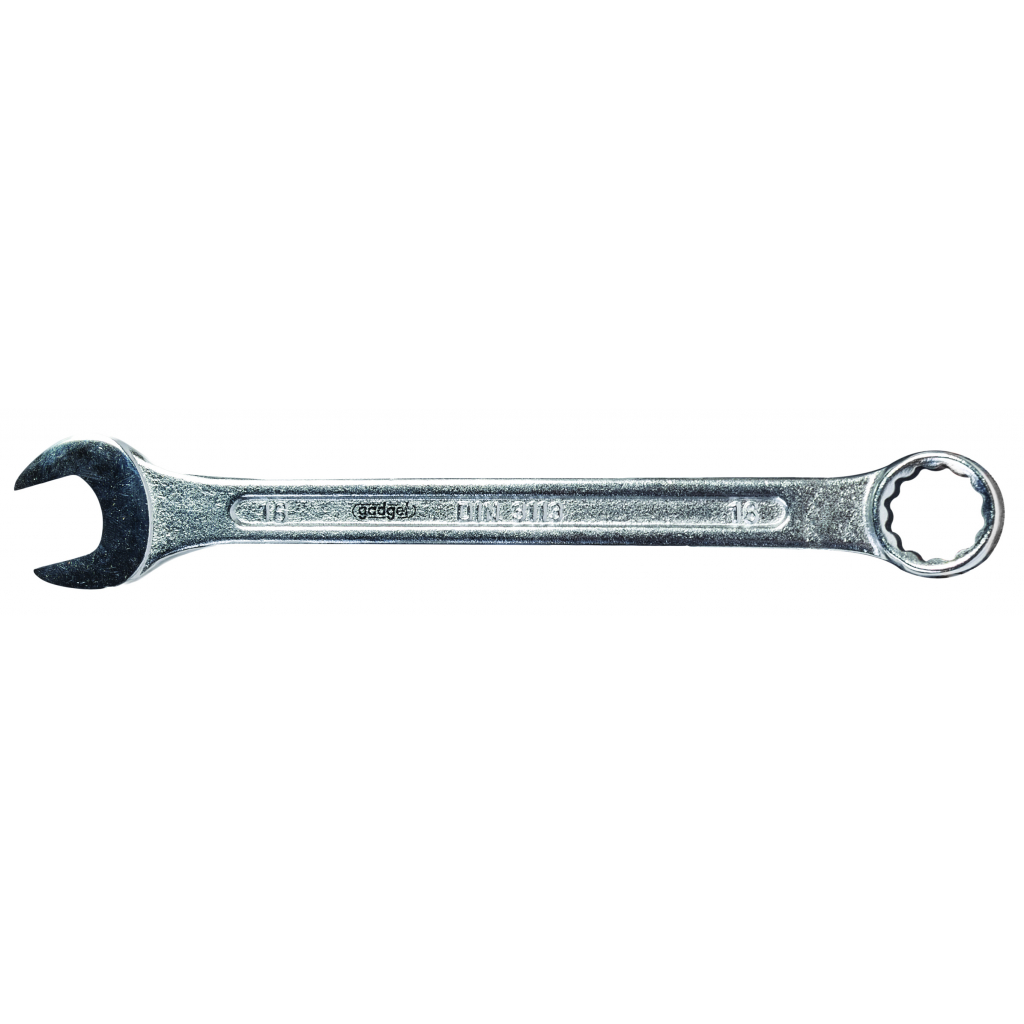

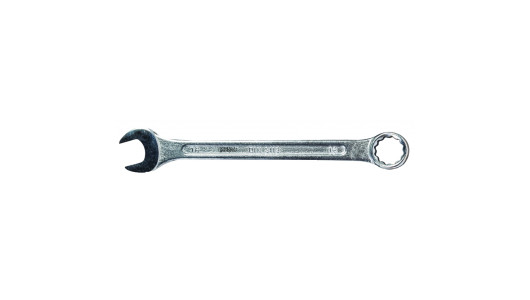

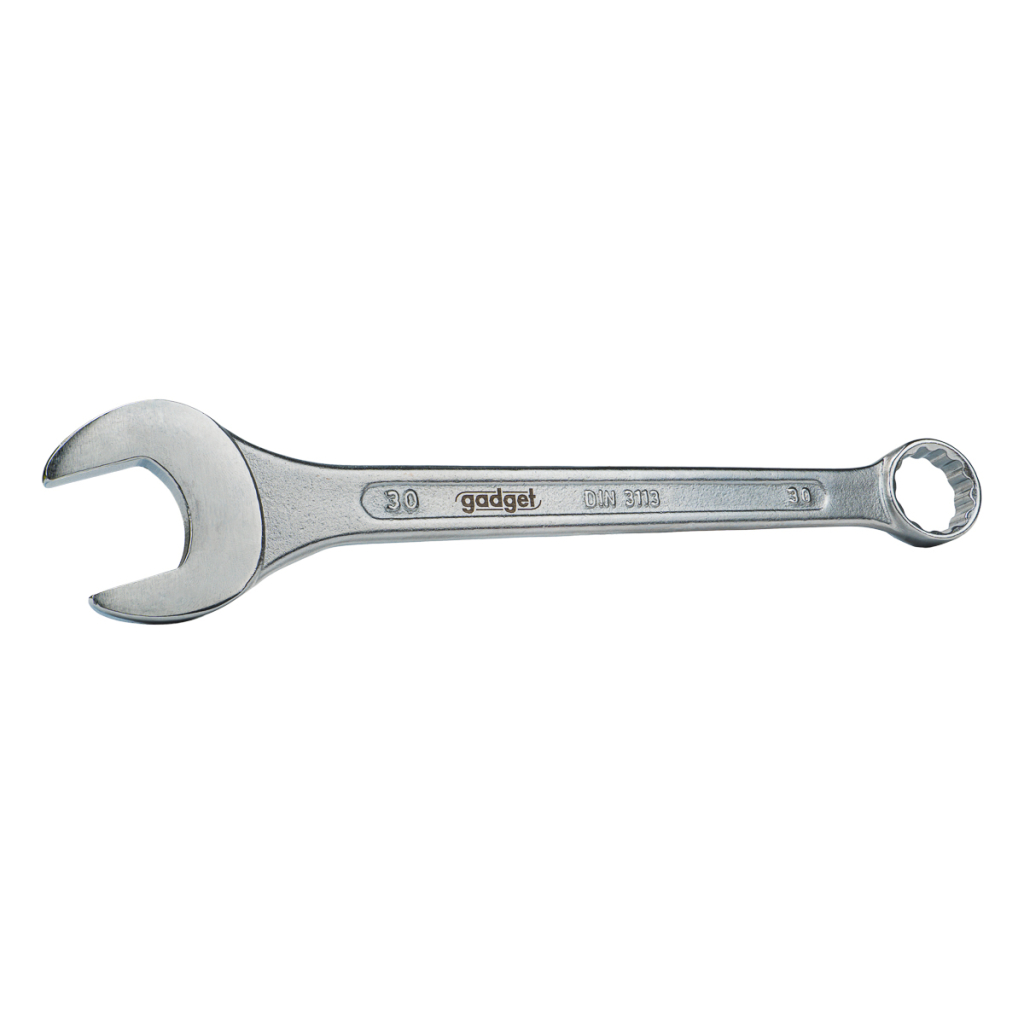

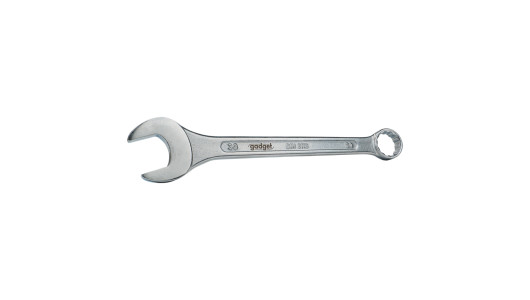

Combination spanners CR-V 30mm GD
Matte 335 mm Cr-V 15 ° No 30 mm 43.4 mm 61 mm 14.7 mm 9.6 mm
230742 Gadget
Combination spanners CR-V 32mm GD
Matte 355 mm Cr-V 15 ° No 32 mm 44.9 mm 65.5 mm 14.2 mm 9.8 mm
Description
The Gadget brand includes a wide range of hobby tools, an indispensable part of any hardware or home workshop.

The Gadget Combination Spanners features:

  • Made of chrome-vanadium (CR-V) steel

  • Features a matte body finish
  • >
  • Polished head

  • Standard: DIN 3110

  • Features
    Main characteristics
    Wrench thickness W1 (mm) 14.7 mm
    Offset ring @ (°) 15 °
    Size (mm) 30 mm
    Length (mm) 335 mm
    Spanner width D1 (mm) 43.4 mm
    Spanner width D2 (mm) 61 mm
    Wrench thickness W2 (mm) 9.6 mm
    Material Cr-V
    Coating Matte
    Reverse No
