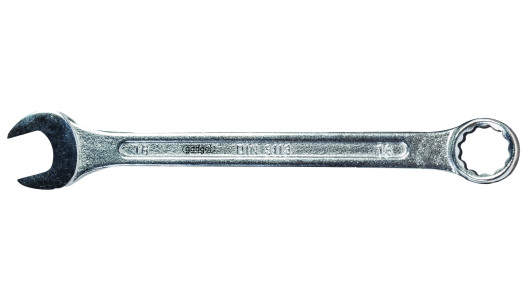

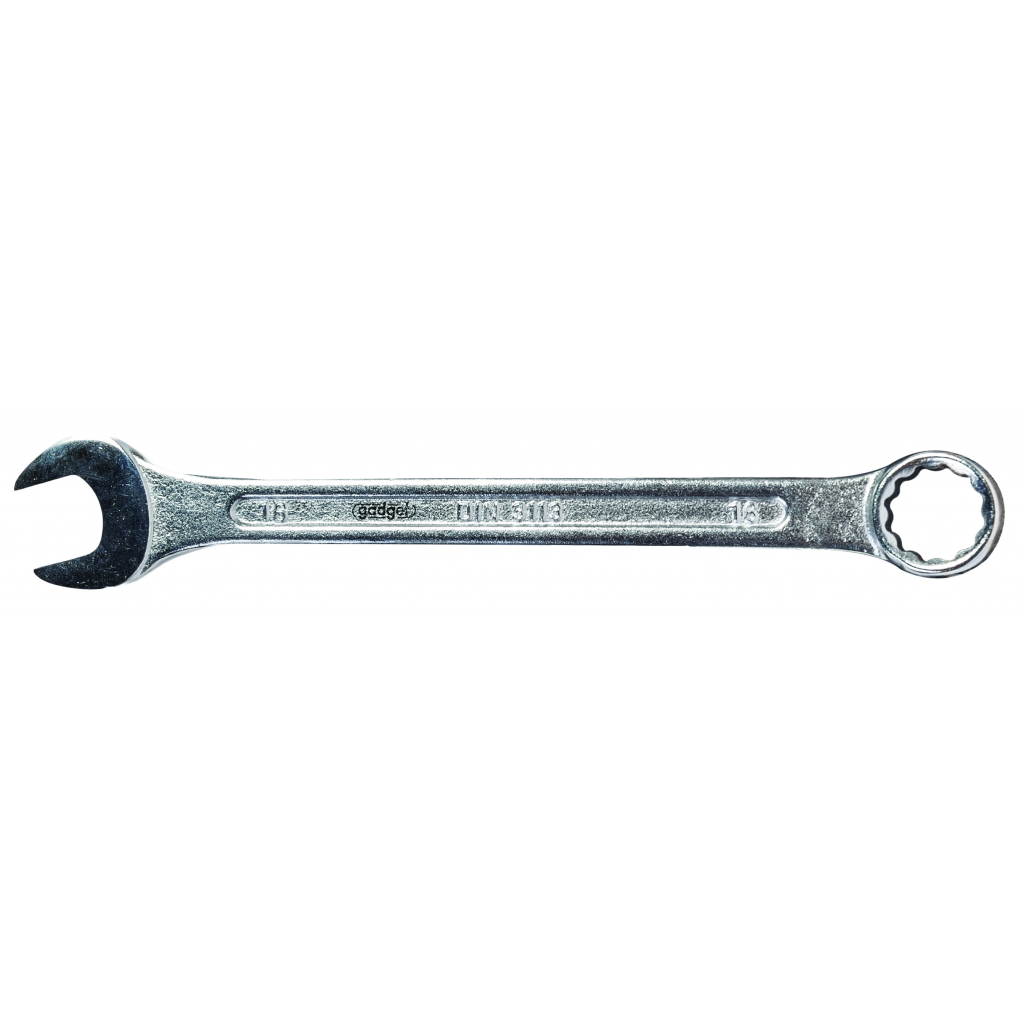

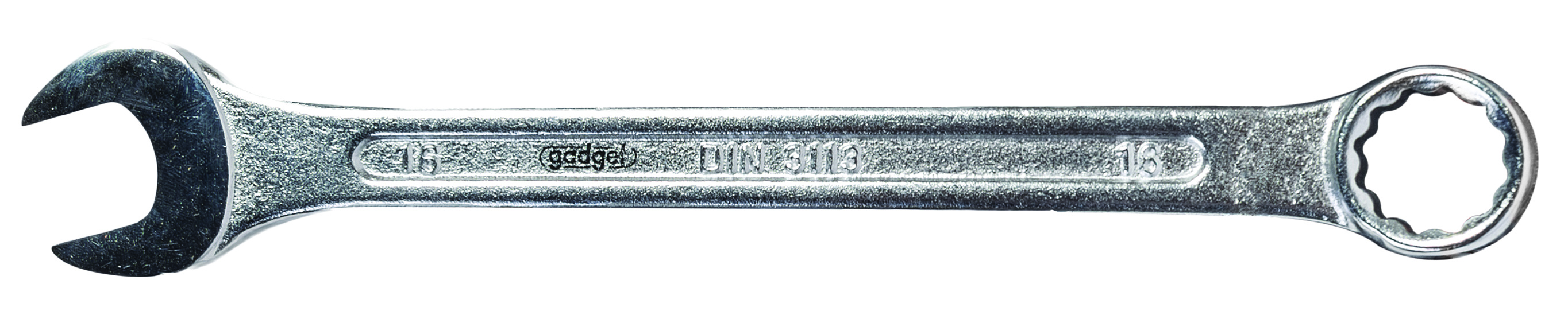

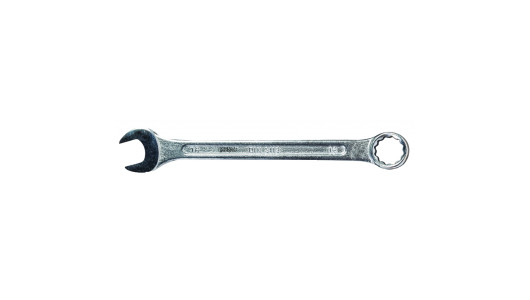

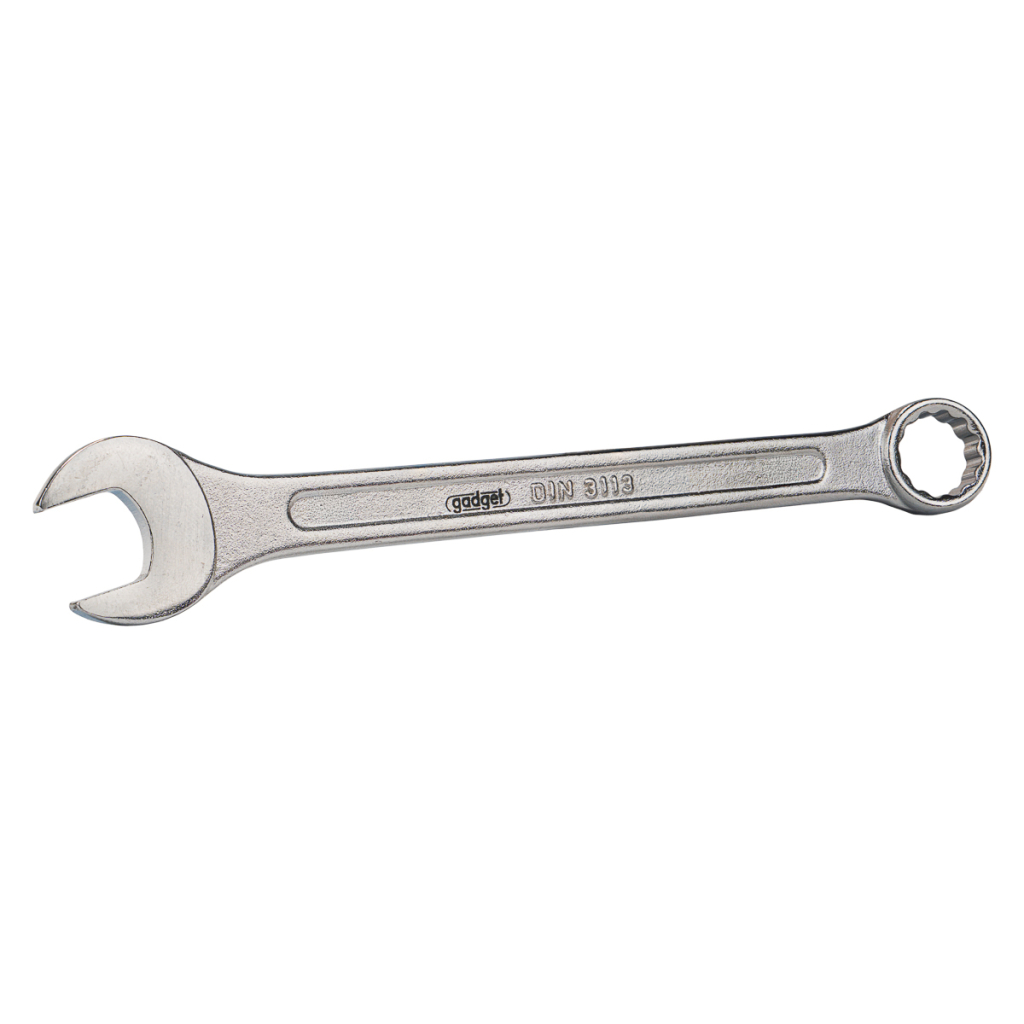

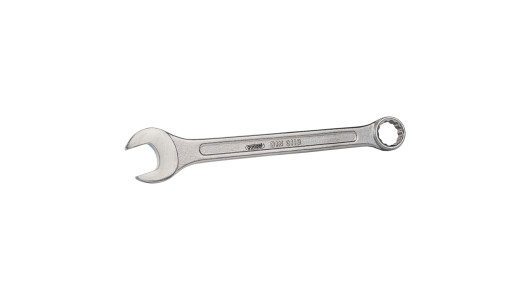

Combination spanners CR-V 18mm GD
Combination spanners CR-V 18mm GD
- Made of chrome vanadium steel
- Polished head
Article number: 230735
Barcode: 3800123172373
Brand: Gadget
Barcode: 3800123172373
Brand: Gadget
Download:
Wrench thickness W1 (mm)
9.5 mm
Wrench thickness W2 (mm)
6.7 mm
Length (mm)
220 mm
Material
Cr-V
Offset ring @ (°)
15 °
Size (mm)
18 mm
Reverse
No
Spanner width D1 (mm)
27.9 mm
Spanner width D2 (mm)
37.8 mm
Coating
Matte
Series
| Art. Number | Product | Coating | Length (mm) | Material | Offset ring @ (°) | Reverse | Size (mm) | Spanner width D1 (mm) | Spanner width D2 (mm) | Wrench thickness W1 (mm) | Wrench thickness W2 (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 230723 |
Gadget Combination Spanners CR-V 6mm GD |
Matte | 100 mm | Cr-V | 15 ° | No | 6 mm | 10.5 mm | 14.3 mm | 5.5 mm | 4 mm |
| 230724 |
Gadget Combination Spanners CR-V 7mm GD |
Matte | 110 mm | Cr-V | 15 ° | No | 7 mm | 11.9 mm | 15.8 mm | 5.5 mm | 3.8 mm |
| 230725 |
Gadget Combination Spanners CR-V 8mm GD |
Matte | 120 mm | Cr-V | 15 ° | No | 8 mm | 12.7 mm | 13.5 mm | 5.7 mm | 3.8 mm |
| 230726 |
Gadget Combination Spanners CR-V 9mm GD |
Matte | 130 mm | Cr-V | 15 ° | No | 9 mm | 14.3 mm | 19.7 mm | 5.7 mm | 4.2 mm |
| 230727 |
Gadget Combination Spanners CR-V 10mm GD |
Matte | 140 mm | Cr-V | 15 ° | No | 10 mm | 15.8 mm | 22.2 mm | 6.9 mm | 4.2 mm |
| 230728 |
Gadget Combination Spanners CR-V 11mm GD |
Matte | 150 mm | Cr-V | 15 ° | No | 11 mm | 17.5 mm | 23.5 mm | 6.9 mm | 4.8 mm |
| 230729 |
Gadget Combination Spanners CR-V 12mm GD |
Matte | 160 mm | Cr-V | 15 ° | No | 12 mm | 18.6 mm | 25.7 mm | 7 mm | 5.6 mm |
| 230730 |
Gadget Combination spanners CR-V 13mm GD |
Matte | 170 mm | Cr-V | 15 ° | No | 13 mm | 20.6 mm | 27 mm | 7.9 mm | 5.8 mm |
| 230731 |
Gadget Combination spanners CR-V 14mm GD |
Matte | 180 mm | Cr-V | 15 ° | No | 14 mm | 22.1 mm | 30 mm | 8.5 mm | 5.9 mm |
| 230732 |
Gadget Combination spanners CR-V 15mm GD |
Matte | 190 mm | Cr-V | 15 ° | No | 15 mm | 23.7 mm | 31.7 mm | 8.9 mm | 5.9 mm |
| 230733 |
Gadget Combination spanners CR-V 16mm GD |
Matte | 200 mm | Cr-V | 15 ° | No | 16 mm | 24.2 mm | 33 mm | 8.9 mm | 5.9 mm |
| 230734 |
Gadget Combination spanners CR-V 17mm GD |
Matte | 210 mm | Cr-V | 15 ° | No | 17 mm | 26.1 mm | 35.6 mm | 9.2 mm | 6.7 mm |
| 230735 |
Gadget Combination spanners CR-V 18mm GD |
Matte | 220 mm | Cr-V | 15 ° | No | 18 mm | 27.9 mm | 37.8 mm | 9.5 mm | 6.7 mm |
| 230736 |
Gadget Combination spanners CR-V 19mm GD |
Matte | 230 mm | Cr-V | 15 ° | No | 19 mm | 28.6 mm | 40 mm | 10.8 mm | 6.7 mm |
| 230737 |
Gadget Combination spanners CR-V 21mm GD |
Matte | 250 mm | Cr-V | 15 ° | No | 21 mm | 31.7 mm | 43 mm | 10.6 mm | 6.7 mm |
| 230738 |
Gadget Combination spanners CR-V 22mm GD |
Matte | 260 mm | Cr-V | 15 ° | No | 22 mm | 31.9 mm | 44.8 mm | 11.5 mm | 7.3 mm |
| 230739 |
Gadget Combination spanners CR-V 24mm GD |
Matte | 280 mm | Cr-V | 15 ° | No | 24 mm | 35.3 mm | 52 mm | 11.6 mm | 7.4 mm |
| 230740 |
Gadget Combination spanners CR-V 27mm GD |
Matte | 305 mm | Cr-V | 15 ° | No | 27 mm | 39.1 mm | 56.7 mm | 13.3 mm | 8.4 mm |
| 230741 |
Gadget Combination spanners CR-V 30mm GD |
Matte | 335 mm | Cr-V | 15 ° | No | 30 mm | 43.4 mm | 61 mm | 14.7 mm | 9.6 mm |
| 230742 |
Gadget Combination spanners CR-V 32mm GD |
Matte | 355 mm | Cr-V | 15 ° | No | 32 mm | 44.9 mm | 65.5 mm | 14.2 mm | 9.8 mm |
Description
The Gadget brand includes a wide range of hobby tools, an indispensable part of any hardware or home workshop.
The Gadget Combination Spanners features:
Made of chrome-vanadium (CR-V) steel
Features a matte body finish >
Polished head
Standard: DIN 3113
The Gadget Combination Spanners features:
Features
Main characteristics
| Offset ring @ (°) | 15 ° |
| Size (mm) | 18 mm |
| Length (mm) | 220 mm |
| Spanner width D1 (mm) | 27.9 mm |
| Spanner width D2 (mm) | 37.8 mm |
| Wrench thickness W2 (mm) | 6.7 mm |
| Wrench thickness W1 (mm) | 9.5 mm |
| Material | Cr-V |
| Coating | Matte |
| Reverse | No |
