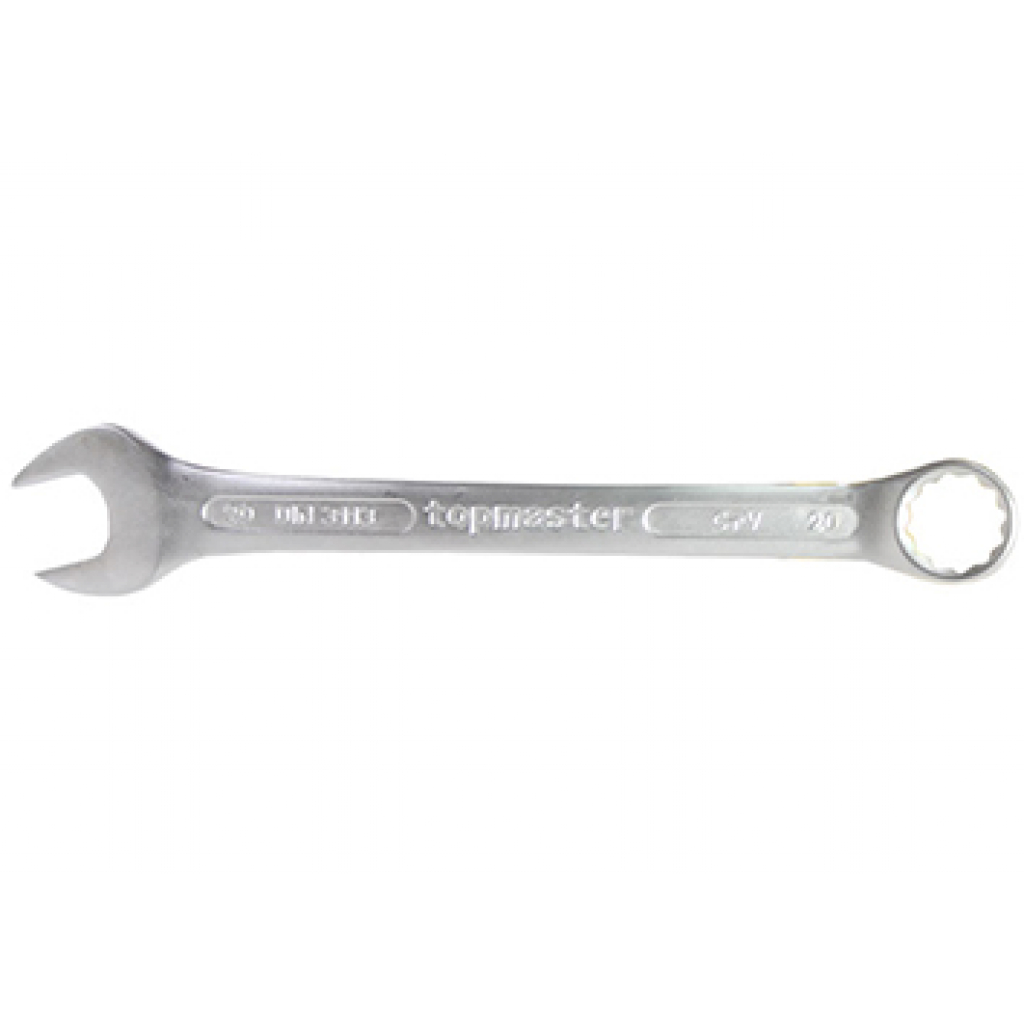

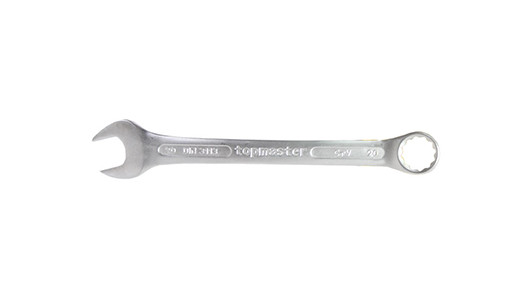

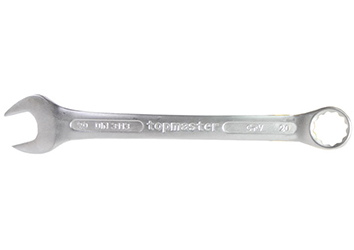

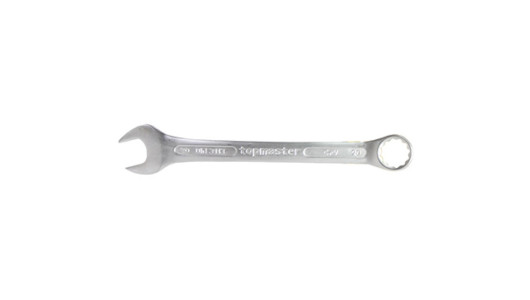

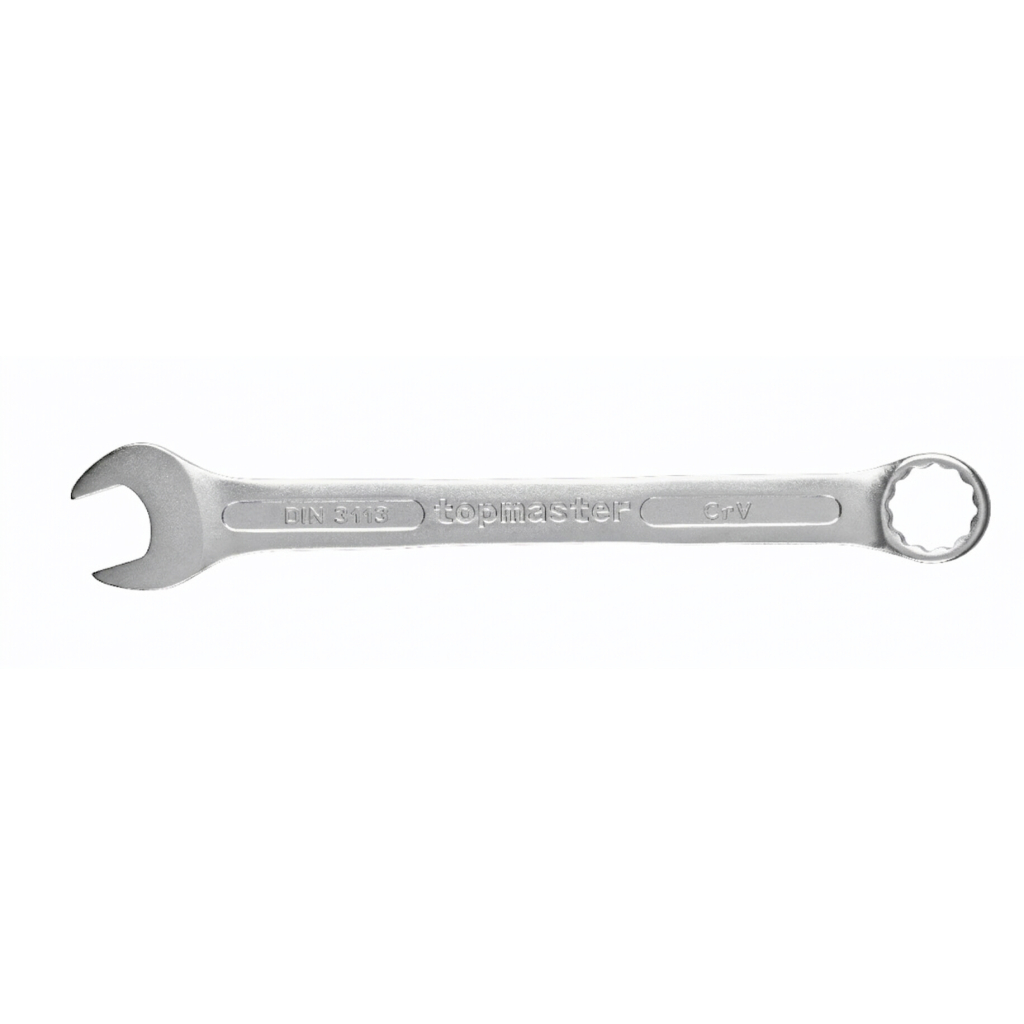

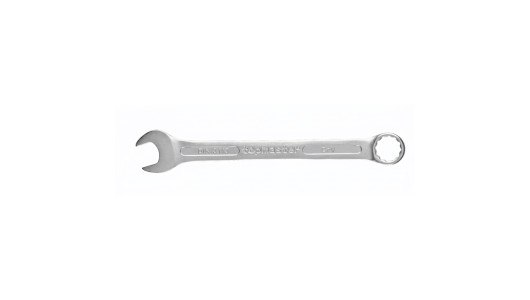

Combination spanners 13mm CR-V TMP DIN 3113

generation logo

The head of the key is inclined 15 °, convenient for work in inaccessible places
Made of high quality chrome vanadium steel

Article number: 235158
Barcode: 3800123114755
Brand: Top Master Pro

Download:

Presenter

Compare

DIN

3113

Warranty (years)

30 years

Wrench thickness W1 (mm)

5.6 mm

Wrench thickness W2 (mm)

8.3 mm

Length (mm)

171 mm

Material

Cr-V

Offset ring @ (°)

15 °

Generation

2nd generation

Size (mm)

13 mm

Reverse

Spanner width D1 (mm)

28.1 mm

Spanner width D2 (mm)

20.2 mm

Coating

Matte

Series

Art. Number	Product	Coating	DIN	Generation	Length (mm)	Material	Offset ring @ (°)	Reverse	Size (mm)	Spanner width D1 (mm)	Spanner width D2 (mm)	Warranty (years)	Wrench thickness W1 (mm)	Wrench thickness W2 (mm)
235151	Top Master Pro Combination spanners 6mm CR-V TMP DIN 3113	Matte	3113	2nd generation	100 mm	Cr-V	15 °	No	6 mm	16 mm	10.6 mm	30 years	3.4 mm	4.8 mm
235152	Top Master Pro Combination spanners 7mm CR-V TMP DIN 3113	Matte	3113	2nd generation	110 mm	Cr-V	15 °	No	7 mm	16.8 mm	11.6 mm	30 years	3.6 mm	5.4 mm
235153	Top Master Pro Combination spanners 8mm CR-V TMP DIN 3113	Matte	3113	2nd generation	115 mm	Cr-V	15 °	No	8 mm	18.8 mm	12.8 mm	30 years	3.8 mm	5.6 mm
235154	Top Master Pro Combination spanners 9mm CR-V TMP DIN 3113	Matte	3113	2nd generation	125 mm	Cr-V	15 °	No	9 mm	20.9 mm	14.4 mm	30 years	4.1 mm	6 mm
235155	Top Master Pro Combination spanners 10mm CR-V TMP DIN 3113	Matte	3113	2nd generation	135 mm	Cr-V	15 °	No	10 mm	22.6 mm	16 mm	30 years	4.5 mm	6.3 mm
235156	Top Master Pro Combination spanners 11mm CR-V TMP DIN 3113	Matte	3113	2nd generation	145 mm	Cr-V	15 °	No	11 mm	24 mm	17.2 mm	30 years	4.9 mm	6.8 mm
235157	Top Master Pro Combination spanners 12mm CR-V TMP DIN 3113	Matte	3113	2nd generation	155 mm	Cr-V	15 °	No	12 mm	26.4 mm	18.5 mm	30 years	5 mm	7.2 mm
235158	Top Master Pro Combination spanners 13mm CR-V TMP DIN 3113	Matte	3113	2nd generation	171 mm	Cr-V	15 °	No	13 mm	28.1 mm	20.2 mm	30 years	5.6 mm	8.3 mm
235159	Top Master Pro Combination spanners 14mm CR-V TMP DIN 3113	Matte	3113	2nd generation	181 mm	Cr-V	15 °	No	14 mm	30.1 mm	21.2 mm	30 years	5.7 mm	8.5 mm
235160	Top Master Pro Combination spanners 15mm CR-V TMP DIN 3113	Matte	3113	2nd generation	185 mm	Cr-V	15 °	No	15 mm	32.1 mm	23 mm	30 years	6.1 mm	9.2 mm
235161	Top Master Pro Combination spanners 16mm CR-V TMP DIN 3113	Matte	3113	2nd generation	195 mm	Cr-V	15 °	No	16 mm	34.2 mm	24.4 mm	30 years	6.5 mm	9.3 mm
235162	Top Master Pro Combination spanners 17mm CR-V TMP DIN 3113	Matte	3113	2nd generation	210 mm	Cr-V	15 °	No	17 mm	36 mm	25 mm	30 years	6.8 mm	9.6 mm
235163	Top Master Pro Combination spanners 18mm CR-V TMP DIN 3113	Matte	3113	2nd generation	220 mm	Cr-V	15 °	No	18 mm	37.5 mm	27.5 mm	30 years	7.2 mm	10.1 mm
235164	Top Master Pro Combination spanners 19mm CR-V TMP DIN 3113	Matte	3113	2nd generation	230 mm	Cr-V	15 °	No	19 mm	40.2 mm	28.6 mm	30 years	7.3 mm	10.2 mm
235165	Top Master Pro Combination spanners 20mm CR-V TMP DIN 3113	Matte	3113	2nd generation	240 mm	Cr-V	15 °	No	20 mm	41.4 mm	30.4 mm	30 years	7.4 mm	10.8 mm
235166	Top Master Pro Combination spanners 21mm CR-V TMP DIN 3113	Matte	3113	2nd generation	245 mm	Cr-V	15 °	No	21 mm	43.2 mm	31.8 mm	30 years	7.6 mm	11.1 mm
235167	Top Master Pro Combination spanners 22mm CR-V TMP DIN 3113	Matte	3113	2nd generation	257 mm	Cr-V	15 °	No	22 mm	45.8 mm	33 mm	30 years	7.9 mm	11.7 mm
235168	Top Master Pro Combination spanners 23mm CR-V TMP DIN 3113	Matte	3113	2nd generation	260 mm	Cr-V	15 °	No	23 mm	47.5 mm	34.8 mm	30 years	8.1 mm	12.2 mm
235169	Top Master Pro Combination spanners 24mm CR-V TMP DIN 3113	Matte	3113	2nd generation	270 mm	Cr-V	15 °	No	24 mm	50 mm	36 mm	30 years	8.4 mm	12.8 mm
235170	Top Master Pro Combination spanners 27mm CR-V TMP DIN 3113	Matte	3113	2nd generation	300 mm	Cr-V	15 °	No	27 mm	55 mm	39.5 mm	30 years	9.1 mm	13.9 mm
235171	Top Master Pro Combination spanners 30mm CR-V TMP DIN 3113	Matte	3113	2nd generation	330 mm	Cr-V	15 °	No	30 mm	60.1 mm	43.5 mm	30 years	9.9 mm	15.2 mm
235172	Top Master Pro Combination spanners 32mm CR-V TMP DIN 3113	Matte	3113	2nd generation	350 mm	Cr-V	15 °	No	32 mm	64 mm	46.8 mm	30 years	10.2 mm	15.9 mm

Description

The professional hand tools of Topmaster combine exceptional design, quality & long service life.

Topmaster 13 mm Combination spanner features:

The spanner head has an inclination of 15 ° - convenient for work in hard-to-reach places

High quality chrome-vanadium (CR- V) steel

Durable matt anti-corrosion chrome finish

Standardization: DIN 3113

Features

Main characteristics

Size (mm)	13 mm
Offset ring @ (°)	15 °
Length (mm)	171 mm
Spanner width D2 (mm)	20.2 mm
Spanner width D1 (mm)	28.1 mm
Generation	2nd generation
Warranty (years)	30 years
DIN	3113
Wrench thickness W1 (mm)	5.6 mm
Wrench thickness W2 (mm)	8.3 mm
Material	Cr-V
Coating	Matte
Reverse	No
