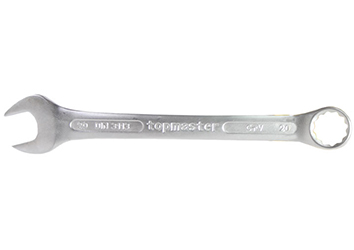

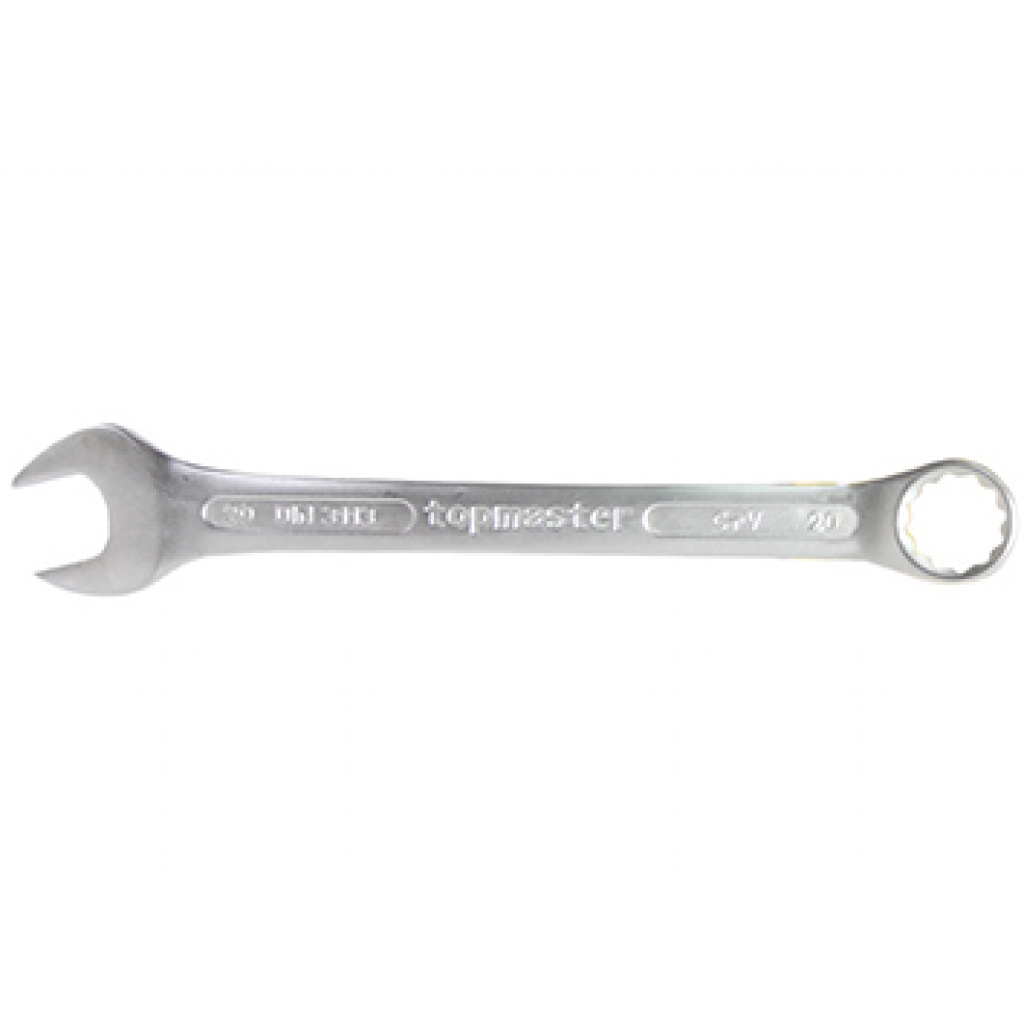

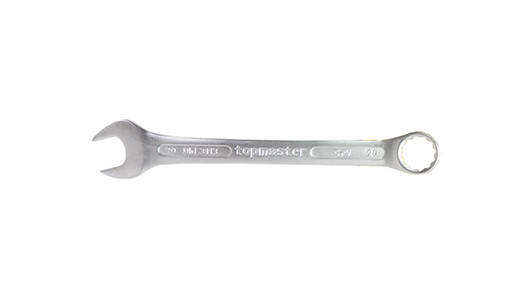

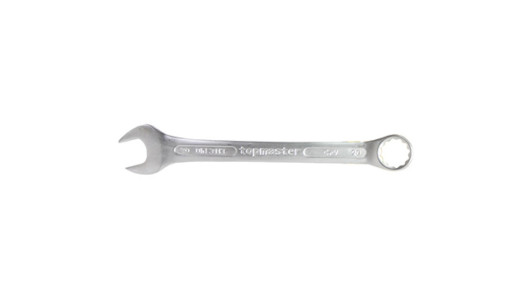

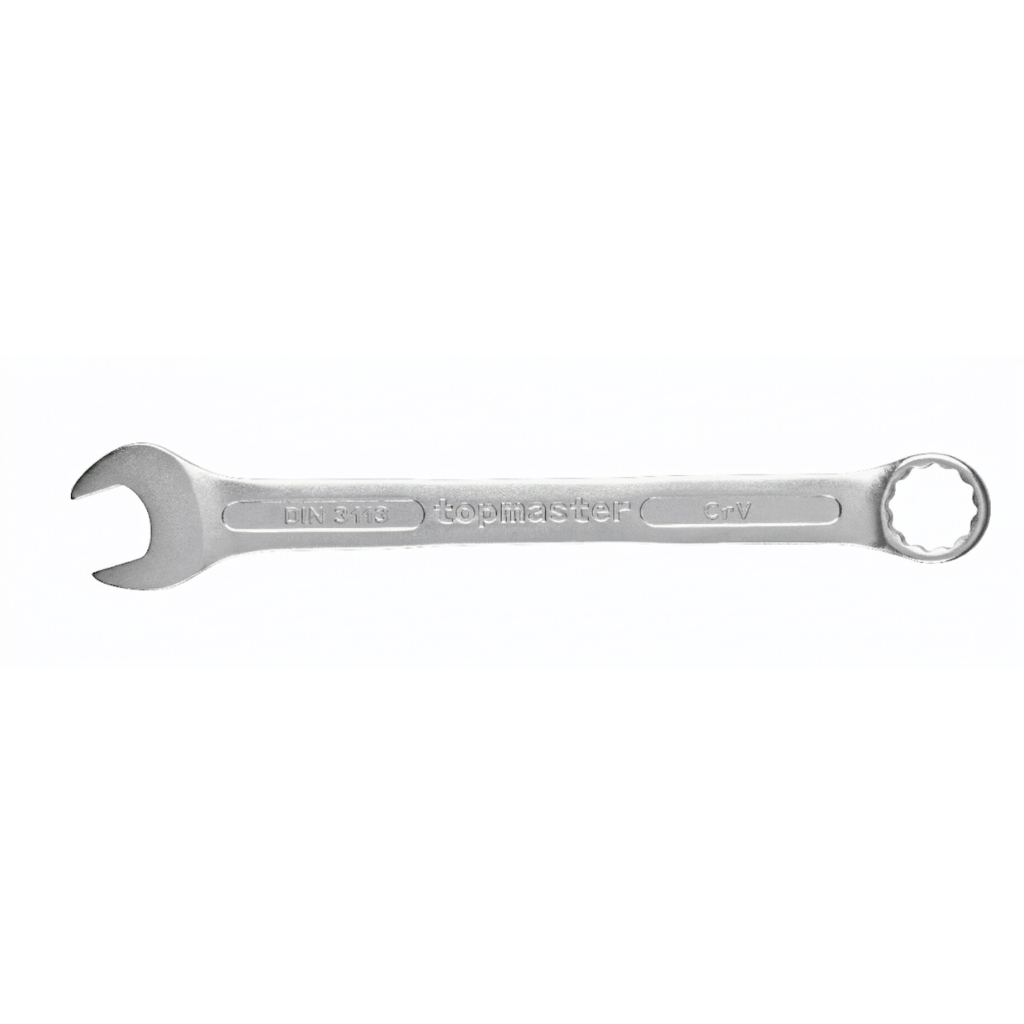

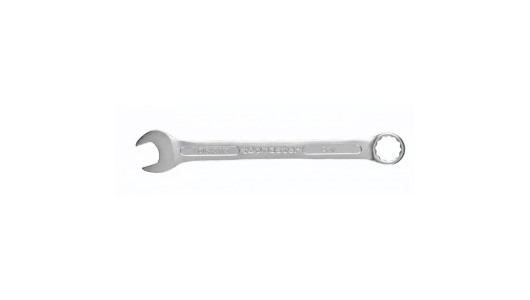

Combination spanners 6mm CR-V TMP DIN 3113

generation logo

The head of the key is inclined 15 °, convenient for work in inaccessible places
Made of high quality chrome vanadium steel

Article number: 235151
Barcode: 3800123114687
Brand: Top Master Pro

Download:

Presenter

Compare

DIN

3113

Warranty (years)

30 years

Wrench thickness W1 (mm)

3.4 mm

Wrench thickness W2 (mm)

4.8 mm

Length (mm)

100 mm

Material

Cr-V

Offset ring @ (°)

15 °

Generation

2nd generation

Size (mm)

6 mm

Reverse

Spanner width D1 (mm)

16 mm

Spanner width D2 (mm)

10.6 mm

Coating

Matte

Series

Art. Number	Product	Coating	DIN	Generation	Length (mm)	Material	Offset ring @ (°)	Reverse	Size (mm)	Spanner width D1 (mm)	Spanner width D2 (mm)	Warranty (years)	Wrench thickness W1 (mm)	Wrench thickness W2 (mm)
235151	Top Master Pro Combination spanners 6mm CR-V TMP DIN 3113	Matte	3113	2nd generation	100 mm	Cr-V	15 °	No	6 mm	16 mm	10.6 mm	30 years	3.4 mm	4.8 mm
235152	Top Master Pro Combination spanners 7mm CR-V TMP DIN 3113	Matte	3113	2nd generation	110 mm	Cr-V	15 °	No	7 mm	16.8 mm	11.6 mm	30 years	3.6 mm	5.4 mm
235153	Top Master Pro Combination spanners 8mm CR-V TMP DIN 3113	Matte	3113	2nd generation	115 mm	Cr-V	15 °	No	8 mm	18.8 mm	12.8 mm	30 years	3.8 mm	5.6 mm
235154	Top Master Pro Combination spanners 9mm CR-V TMP DIN 3113	Matte	3113	2nd generation	125 mm	Cr-V	15 °	No	9 mm	20.9 mm	14.4 mm	30 years	4.1 mm	6 mm
235155	Top Master Pro Combination spanners 10mm CR-V TMP DIN 3113	Matte	3113	2nd generation	135 mm	Cr-V	15 °	No	10 mm	22.6 mm	16 mm	30 years	4.5 mm	6.3 mm
235156	Top Master Pro Combination spanners 11mm CR-V TMP DIN 3113	Matte	3113	2nd generation	145 mm	Cr-V	15 °	No	11 mm	24 mm	17.2 mm	30 years	4.9 mm	6.8 mm
235157	Top Master Pro Combination spanners 12mm CR-V TMP DIN 3113	Matte	3113	2nd generation	155 mm	Cr-V	15 °	No	12 mm	26.4 mm	18.5 mm	30 years	5 mm	7.2 mm
235158	Top Master Pro Combination spanners 13mm CR-V TMP DIN 3113	Matte	3113	2nd generation	171 mm	Cr-V	15 °	No	13 mm	28.1 mm	20.2 mm	30 years	5.6 mm	8.3 mm
235159	Top Master Pro Combination spanners 14mm CR-V TMP DIN 3113	Matte	3113	2nd generation	181 mm	Cr-V	15 °	No	14 mm	30.1 mm	21.2 mm	30 years	5.7 mm	8.5 mm
235160	Top Master Pro Combination spanners 15mm CR-V TMP DIN 3113	Matte	3113	2nd generation	185 mm	Cr-V	15 °	No	15 mm	32.1 mm	23 mm	30 years	6.1 mm	9.2 mm
235161	Top Master Pro Combination spanners 16mm CR-V TMP DIN 3113	Matte	3113	2nd generation	195 mm	Cr-V	15 °	No	16 mm	34.2 mm	24.4 mm	30 years	6.5 mm	9.3 mm
235162	Top Master Pro Combination spanners 17mm CR-V TMP DIN 3113	Matte	3113	2nd generation	210 mm	Cr-V	15 °	No	17 mm	36 mm	25 mm	30 years	6.8 mm	9.6 mm
235163	Top Master Pro Combination spanners 18mm CR-V TMP DIN 3113	Matte	3113	2nd generation	220 mm	Cr-V	15 °	No	18 mm	37.5 mm	27.5 mm	30 years	7.2 mm	10.1 mm
235164	Top Master Pro Combination spanners 19mm CR-V TMP DIN 3113	Matte	3113	2nd generation	230 mm	Cr-V	15 °	No	19 mm	40.2 mm	28.6 mm	30 years	7.3 mm	10.2 mm
235165	Top Master Pro Combination spanners 20mm CR-V TMP DIN 3113	Matte	3113	2nd generation	240 mm	Cr-V	15 °	No	20 mm	41.4 mm	30.4 mm	30 years	7.4 mm	10.8 mm
235166	Top Master Pro Combination spanners 21mm CR-V TMP DIN 3113	Matte	3113	2nd generation	245 mm	Cr-V	15 °	No	21 mm	43.2 mm	31.8 mm	30 years	7.6 mm	11.1 mm
235167	Top Master Pro Combination spanners 22mm CR-V TMP DIN 3113	Matte	3113	2nd generation	257 mm	Cr-V	15 °	No	22 mm	45.8 mm	33 mm	30 years	7.9 mm	11.7 mm
235168	Top Master Pro Combination spanners 23mm CR-V TMP DIN 3113	Matte	3113	2nd generation	260 mm	Cr-V	15 °	No	23 mm	47.5 mm	34.8 mm	30 years	8.1 mm	12.2 mm
235169	Top Master Pro Combination spanners 24mm CR-V TMP DIN 3113	Matte	3113	2nd generation	270 mm	Cr-V	15 °	No	24 mm	50 mm	36 mm	30 years	8.4 mm	12.8 mm
235170	Top Master Pro Combination spanners 27mm CR-V TMP DIN 3113	Matte	3113	2nd generation	300 mm	Cr-V	15 °	No	27 mm	55 mm	39.5 mm	30 years	9.1 mm	13.9 mm
235171	Top Master Pro Combination spanners 30mm CR-V TMP DIN 3113	Matte	3113	2nd generation	330 mm	Cr-V	15 °	No	30 mm	60.1 mm	43.5 mm	30 years	9.9 mm	15.2 mm
235172	Top Master Pro Combination spanners 32mm CR-V TMP DIN 3113	Matte	3113	2nd generation	350 mm	Cr-V	15 °	No	32 mm	64 mm	46.8 mm	30 years	10.2 mm	15.9 mm

Description

The professional hand tools of Topmaster combine exceptional design, quality & long service life.

Topmaster 6 mm Combination spanner features:

The spanner head has an inclination of 15 ° - convenient for work in hard-to-reach places

High quality chrome-vanadium (CR- V) steel

Durable matt anti-corrosion chrome finish

Standardization: DIN 3113

Features

Main characteristics

Spanner width D2 (mm)	10.6 mm
Length (mm)	100 mm
Offset ring @ (°)	15 °
Spanner width D1 (mm)	16 mm
Generation	2nd generation
Wrench thickness W1 (mm)	3.4 mm
Warranty (years)	30 years
DIN	3113
Wrench thickness W2 (mm)	4.8 mm
Size (mm)	6 mm
Material	Cr-V
Coating	Matte
Reverse	No
